Product Details:
|
| Type: | Crimp Terminal | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL | Surface Treatment: | Coated Tin |
| Product Name: | Cable Terminal | Special: | OEM Service Offered |
| Application: | Wire Connecting | Port: | Shanghai Port |
| High Light: | OEM pre insulated lugs,27A Insulated Blade Terminals,27A pre insulated lugs |
||

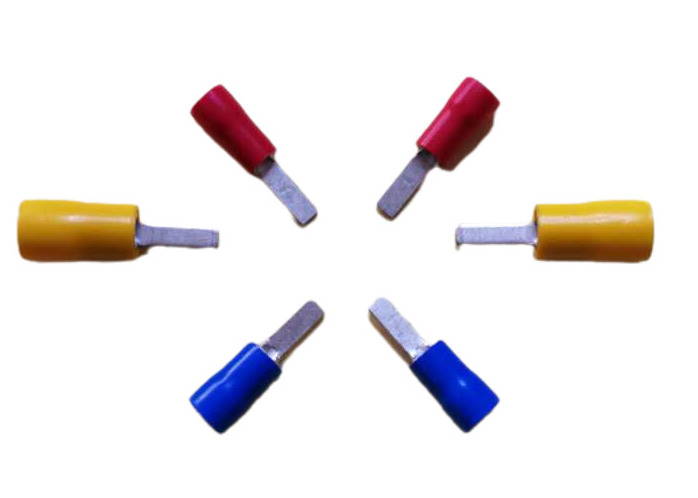

Flared Entry Copper Sleeve Vinyl Insulated Blade Pre Insulated Terminals
Easy-entry
It is easy to guide the cable properly in the cable clip as the insulation sleeve is of an “easy-entry” type, which means that it guides the cable correctly in the clip.
High grade PVC insulation makes crimping easy whilst ensuring complete integrity of termination. Available in packs of 100 pieces as standard. For Higher Bulk orders, please contact us for details.
A complete range of pre-insulated terminals that combine high quality with competitive pricing.
High grade PVC insulation makes crimping easy whilst ensuring complete integrity of termination
VR indicates 'Vibration Resistant' - Extra copper within the crimp terminal (See spec sheet)
Specification:
| PART NO |
TYPE | WIRE RANGE | B | L | t | φD | H | Color | Max current A |
Crimping Tools | |
| AWG/MCM | mm² | ||||||||||
| 01201 | 1.25-9 | 22-16 | 0.5-1.6 | 2.8 | 19.5 | 0.8 | 4.0 | 10.6 | RED | 19 | RYO-8 YYT-8 |
| 01209 | 1.25-11.1 | 3.0 | 21.6 | ||||||||
| 01202 | 1.25-14.5 | 3.0 | 25.0 | ||||||||
| 01203 | 1.25-18 | 2.5 | 28.5 | ||||||||
| 01204 | 2-9 | 16-14 | 1.0-2.6 | 2.8 | 19.5 | 0.8 | 4.7 | 10.7 | BLUE | 27 | |
| 01205 | 2-16 | 3.0 | 26.8 | ||||||||
| 01206 | 2-18 | 2.5 | 28.5 | ||||||||
| 01207 | 5.5-10 | 12-10 | 2.6-6.6 | 2.8 | 23.7 | 1.0 | 6.2 | 13.7 | YELLOW | 48 | |
| 01208 | 5.5-18 | 4.5 | 31.7 | ||||||||
Process:
Selected material , Production, QC inspection ,Packing, Delivery
Certification:
UL ,TUV, ISO9001, ISO14001, Brand name YL
The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.
Carefully selected material, strictly QC standards,
we had kept our quality for more than 20 years, developing for 24 years we are more profession.
Company profile:
Suzhou Yuanli Metal Enterprise Co., Ltd was established in 1993 as a wholly Taiwanese invested company,which specializes in the manufacturing of various Ring terminals, Fork terminals, Copper tube terminals, Closed-end terminals, Butt connectors, Blade terminals, Pin terminals, Male and Female terminals.
After 24years development, we are most famous brand name in China.
We passed ISO9001 , ISO14001, TUV
Some products even have obtained the U.S UL certification, also all kinds of terminals have passed SGS test and meet ROHS requirement.
OEM service
If you have drawings,we can produce for you;
If you have sampels, we can research for you;
If you have requirements, we can customize for you;
We would be your reliable partner and will work out the best solution for you !
Welcome to inquire from us !
