Product Details:
|
| Type: | Crimp Terminal | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL, Rosh, Reach, ISO | Surface Treatment: | Coated Tin |
| Application: | Wire Connecting | Special: | OEM Service Offered |
| Color: | Silver | Name: | 1.5mm2 High Quality Tinned Pure Copper Cable Lug |
| High Light: | 630mm Copper Cable Terminal,630mm copper cable lugs,1.5mm2 reach Copper Cable Terminal |
||
Wire Connecting Coated Tin 630mm Copper Cable Terminal

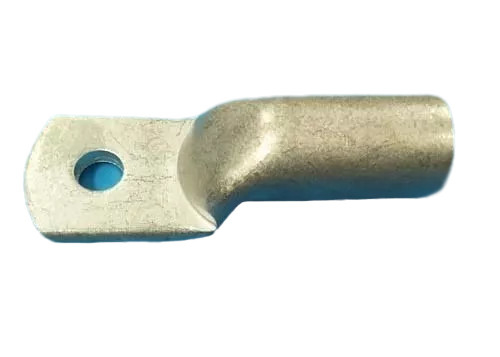

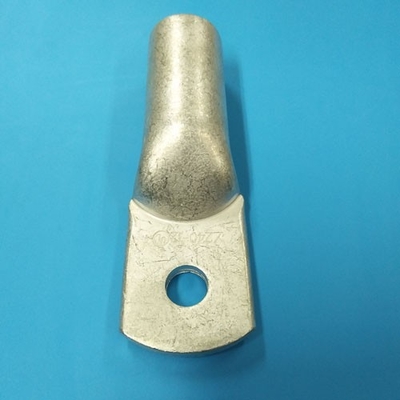

High quality DIN copper cable lug 630mm
Cable Lugs are manufactured from 99.95% oxygen-free high conductivity copper tube and are electro tinned.
The materials are high quality copper, by vacuum annealing, better conductivity, ductility and low impedance;
The surface is smooth with high touch force;
The surface is tinned for corrosion protection and preventing the electronic effect;
Wire can be cremped or soldered to copper lug,widely used in electromobile, charging pile; electrical engineering, power system, distribution equipments, etc
Patent cable lug, China Brand name,Taiwanese mature technology, Top quality for long life time
1. Material: 100% Pure copper,Top material to producing out good quality products
2. Size: 1.5mm2~630mm2
3. Standard: JIS/DIN/Singapore/UK
4. Certification: UL, ISO9001, ROHS, Reach
5. Specially used for industry
| Product Name | High quality tinned pure copper cable lug |
| Material | Pure copper |
| Color | Silver |
| Standard | JIS/DIN/Singapore/UK |
| Certification | UL, Rosh, Reach, ISO9001 |
| Used | Car, ship, telecommunication equipment, controller systerm, power cabinet |
| PART NO | TYPE | φD | φd1 | E | H | B | φ d2 | F | L |
| 00602 | 2.5-4 | 4.5 | 2.9 | 13.0 | 6.0 | 8.0 | 4.3 | 1.0 | 27 |
| 00603 | 2.5-5 | 5.3 | |||||||
| 00604 | 2.5-6 | 10.0 | 6.4 | ||||||
| 00605 | 4-5 | 5.2 | 3.6 | 13.0 | 6.0 | 10.0 | 5.3 | 28 | |
| 00606 | 4-6 | 6.4 | |||||||
| 00607 | 6-5 | 6.0 | 4.2 | 17.0 | 7.5 | 10.0 | 5.3 | 35 | |
| 00608 | 6-6 | 6.4 | |||||||
| 00609 | 6-8 | 12.0 | 8.4 | ||||||
| 00610 | 10-6 | 7.0 | 5.0 | 17.0 | 8.0 | 12.4 | 6.4 | 36 | |
| 00611 | 10-8 | 8.4 | |||||||
| 00612 | 16-6 | 9.0 | 6.0 | 32.0 | 11.0 | 14.0 | 6.4 | 1.5 | 58 |
| 00613 | 16-8 | 8.4 | |||||||
| 00614 | 25-6 | 10.0 | 7.0 | 32.0 | 11.0 | 15.0 | 6.4 | 58 | |
| 00615 | 25-8 | 8.4 | |||||||
| 00616 | 25-10 | 17.5 | 10.5 | ||||||
| 00617 | 35-6 | 12.0 | 9.0 | 36.0 | 12.0 | 16.8 | 6.4 | 2.0 | 62 |
| 00618 | 35-8 | 8.4 | |||||||
| 00619 | 35-10 | 18.0 | 10.5 | ||||||
| 00620 | 50-8 | 14.0 | 10.0 | 40.0 | 13.0 | 19.0 | 8.4 | 72 | |
| 00621 | 50-10 | 10.5 | |||||||
| 00622 | 70-8 | 16.0 | 12.0 | 42.0 | 14.0 | 23.0 | 8.4 | 75.5 | |
| 00623 | 70-10 | 10.5 | |||||||
| 00624 | 70-12 | 13.0 | |||||||
| 00625 | 95-10 | 18.0 | 14.0 | 44.0 | 16.0 | 27.0 | 10.5 | 84 | |
| 00626 | 95-12 | 13.0 | |||||||
| 00627 | 120-12 | 21.0 | 16.0 | 46.0 | 18.0 | 30.0 | 13.0 | 90 | |
| 00628 | 120-16 | 17.0 | |||||||
| 00629 | 150-12 | 23.0 | 17.0 | 50.0 | 18.0 | 33.0 | 13.0 | 98 | |
| 00630 | 150-16 | 17.0 | |||||||
| 00631 | 185-12 | 25.0 | 19.0 | 52.0 | 20.0 | 36.0 | 13.0 | 101 | |
| 00632 | 185-16 | 17.0 | |||||||
| 00633 | 240-12 | 28.0 | 21.6 | 56.0 | 22.0 | 40.0 | 13.0 | 110 | |
| 00634 | 240-16 | 17.0 | 110 | ||||||
| 00635 | 240-20 | 21.0 | |||||||
| 00636 | 300-16 | 31.0 | 24.0 | 58.0 | 24.0 | 45.0 | 17.0 | 3.0 | 116 |
| 00637 | 300-20 | 21.0 | 120 | ||||||
| 00638 | 400-16 | 36.5 | 28.5 | 66.0 | 25.0 | 51.3 | 17.0 | 130 | |
| 00639 | 400-20 | 21.0 | 135 | ||||||
| 00640 | 500-16 | 39.0 | 30.5 | 70.0 | 28.0 | 56.0 | 17.0 | 141 | |
| 00641 | 500-20 | 21.0 | 146 | ||||||
| 00642 | 630-20 | 45.0 | 35.5 | 80.0 | 33.0 | 65.0 | 21.0 | 168 |
Learn more
1. Can't find your required size? contact with us
2. Want to custom? contact with us
3. Need quotation? contact with us
4. Test sample? Contact with us
FAQ
Q1: Are you trading company or manufacturer ?
A: We are directly factory, there is not any trading company between us, help you save much cost
Q2: How can you proof of pure copper?
1: we provide free sample to test
2: we provide third party material analasys report for your check
3: Your are allowed to arrange third party to inspect us freely
Q3: How long is your delivery time?
A: Generally it is 5 working days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q4: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: What is your terms of payment ?
A: T/T for large order and western union for sample order
