Product Details:
|
| Type: | Crimp Terminal | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL | Surface Treatment: | Coated Tin Plating |
| Application: | Wire Connecting | Selling Units: | Single Item |
| Single Package Size : | 30X20X23 Cm | Single Gross Weight: | 0.030 Kg |
| Package Type: | 50pcs/transparent Poly Bag, 15bags/ Carton , Carton Size30*20*22.5cm | ||
| High Light: | 00602 Copper Cable Terminal,OEM Copper Cable Terminal,0.030kg copper tube terminals |
||

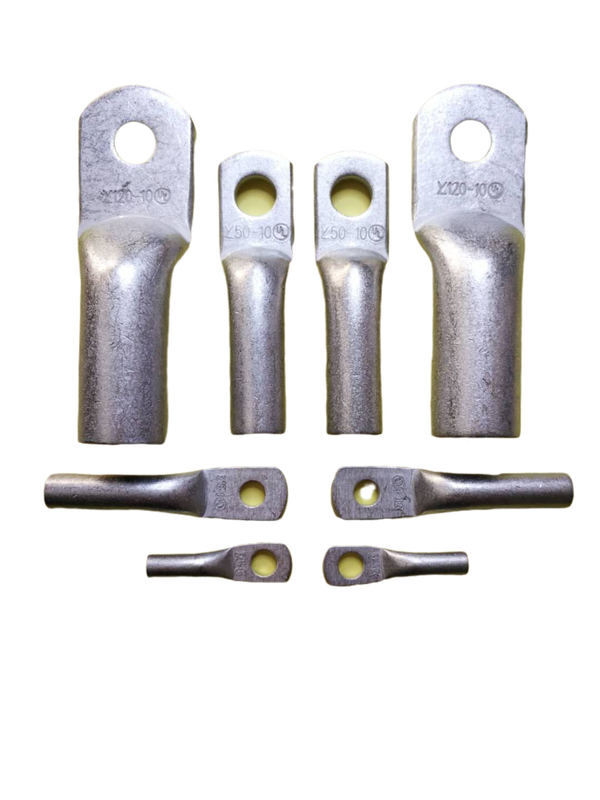

Wire Connecting 0.030kg Tin Plated Copper Tube Lugs
Electrical lugs are used when permanent connection is not possible between devices or cables. Use of cable lugs allows in easy installation, repair and maintenance of electrical devices or cables. Most common use of lugs includes connecting one cable with another cable or connection more than two cables.
Compression Lugs are a stud-type input power connection. It is typically made of high conductivity wrought copper and has one or two holes to provide a reliable automatic connection, as well as an electro tin plate to reduce corrosion. Compression lugs are also available in aluminum.
Specification:
| PART NO | TYPE | φD | φd1 | E | H | B | φ d2 | F | L |
| 00602 | 2.5-4 | 4.5 | 2.9 | 13.0 | 6.0 | 8.0 | 4.3 | 1.0 | 27 |
| 00603 | 2.5-5 | 5.3 | |||||||
| 00604 | 2.5-6 | 10.0 | 6.4 | ||||||
| 00605 | 4-5 | 5.2 | 3.6 | 13.0 | 6.0 | 10.0 | 5.3 | 28 | |
| 00606 | 4-6 | 6.4 | |||||||
| 00607 | 6-5 | 6.0 | 4.2 | 17.0 | 7.5 | 10.0 | 5.3 | 35 | |
| 00608 | 6-6 | 6.4 | |||||||
| 00609 | 6-8 | 12.0 | 8.4 | ||||||
| 00610 | 10-6 | 7.0 | 5.0 | 17.0 | 8.0 | 12.4 | 6.4 | 36 | |
| 00611 | 10-8 | 8.4 | |||||||
| 00612 | 16-6 | 9.0 | 6.0 | 32.0 | 11.0 | 14.0 | 6.4 | 1.5 | 58 |
| 00613 | 16-8 | 8.4 | |||||||
| 00614 | 25-6 | 10.0 | 7.0 | 32.0 | 11.0 | 15.0 | 6.4 | 58 | |
| 00615 | 25-8 | 8.4 | |||||||
| 00616 | 25-10 | 17.5 | 10.5 | ||||||
| 00617 | 35-6 | 12.0 | 9.0 | 36.0 | 12.0 | 16.8 | 6.4 | 2.0 | 62 |
| 00618 | 35-8 | 8.4 | |||||||
| 00619 | 35-10 | 18.0 | 10.5 | ||||||
| 00620 | 50-8 | 14.0 | 10.0 | 40.0 | 13.0 | 19.0 | 8.4 | 72 | |
| 00621 | 50-10 | 10.5 | |||||||
| 00622 | 70-8 | 16.0 | 12.0 | 42.0 | 14.0 | 23.0 | 8.4 | 75.5 | |
| 00623 | 70-10 | 10.5 | |||||||
| 00624 | 70-12 | 13.0 | |||||||
| 00625 | 95-10 | 18.0 | 14.0 | 44.0 | 16.0 | 27.0 | 10.5 | 84 | |
| 00626 | 95-12 | 13.0 | |||||||
| 00627 | 120-12 | 21.0 | 16.0 | 46.0 | 18.0 | 30.0 | 13.0 | 90 | |
| 00628 | 120-16 | 17.0 | |||||||
| 00629 | 150-12 | 23.0 | 17.0 | 50.0 | 18.0 | 33.0 | 13.0 | 98 | |
| 00630 | 150-16 | 17.0 | |||||||
| 00631 | 185-12 | 25.0 | 19.0 | 52.0 | 20.0 | 36.0 | 13.0 | 101 | |
| 00632 | 185-16 | 17.0 | |||||||
| 00633 | 240-12 | 28.0 | 21.6 | 56.0 | 22.0 | 40.0 | 13.0 | 110 | |
| 00634 | 240-16 | 17.0 | 110 | ||||||
| 00635 | 240-20 | 21.0 | |||||||
| 00636 | 300-16 | 31.0 | 24.0 | 58.0 | 24.0 | 45.0 | 17.0 | 3.0 | 116 |
| 00637 | 300-20 | 21.0 | 120 | ||||||
| 00638 | 400-16 | 36.5 | 28.5 | 66.0 | 25.0 | 51.3 | 17.0 | 130 | |
| 00639 | 400-20 | 21.0 | 135 | ||||||
| 00640 | 500-16 | 39.0 | 30.5 | 70.0 | 28.0 | 56.0 | 17.0 | 141 | |
| 00641 | 500-20 | 21.0 | 146 | ||||||
| 00642 | 630-20 | 45.0 | 35.5 | 80.0 | 33.0 | 65.0 | 21.0 | 168 |
Process:
Selected material , Production, QC inspection ,Packing, Delivery
Certification:
UL ,TUV, ISO9001, ISO14001, Brand name YL
The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.
Carefully selected material, strictly QC standards,
we had kept our quality for more than 20 years, developing for 24 years we are more profession.
Company profile:
Suzhou Yuanli Metal Enterprise Co., Ltd was established in 1993 as a wholly Taiwanese invested company,which specializes in the manufacturing of various Ring terminals, Fork terminals, Copper tube terminals, Closed-end terminals, Butt connectors, Blade terminals, Pin terminals, Male and Female terminals.
After 24years development, we are most famous brand name in China.
We passed ISO9001 , ISO14001, TUV.
Some products even have obtained the U.S UL certification, also all kinds of terminals have passed SGS test and meet ROHS requirement.
OEM service
If you have drawings,we can produce for you;
If you have sampels, we can research for you;
If you have requirements, we can customize for you;
We would be your reliable partner and will work out the best solution for you !
Welcome to inquire from us !
