Product Details:
|
| Type: | Lug | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | Cable Lug | Product Name: | Red Copper Pre-insulated Cord |
| Surface Treatment: | Coated Tin | Special: | OEM Service Offered |
| Selling Units: | Single Item | Single Package Size : | 30X20X23 Cm |

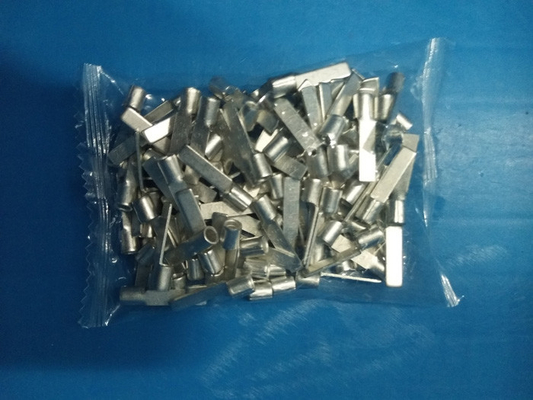

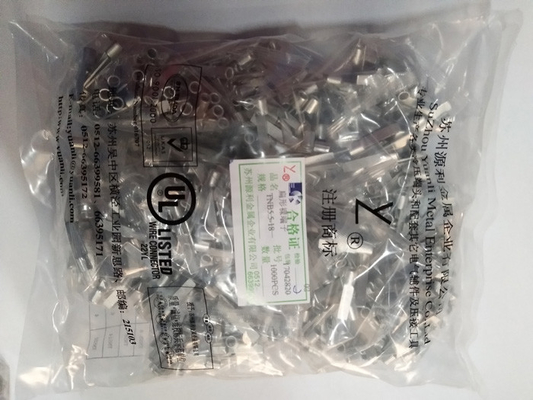

| Single Gross Weight: | 0.310 Kg | Package Type: | 30PCS/transparent Poly Bag,20bags/carton ,carton Size 30*22.5*20cm |
| High Light: | soldered barrel copper wire connector,OEM copper electrical lugs,OEM copper wire connector |
||

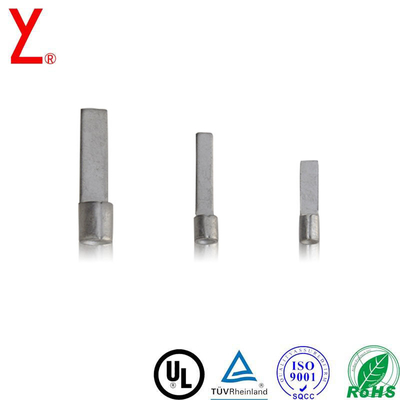

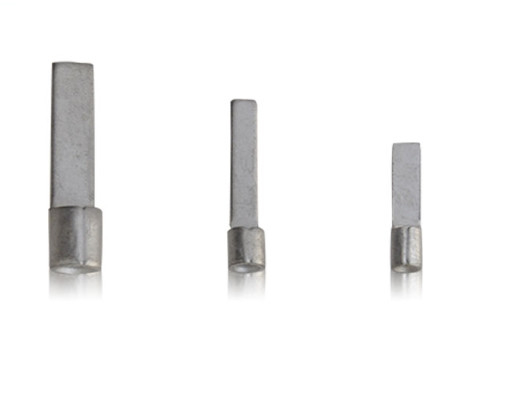

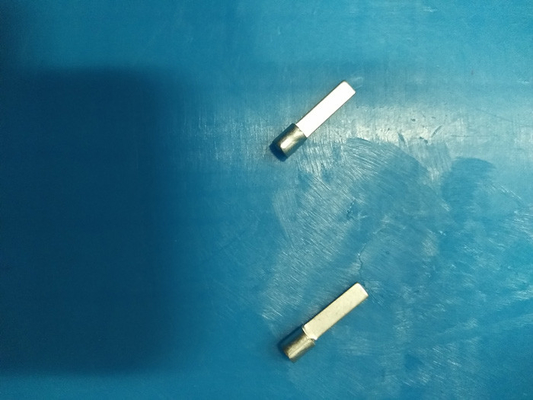

Soldered Barrel Non Insulated Blade Terminal Copper Wire Connector
Copper cable lugs are applicable to the connection of copper or Aluminium core cable and electronic apparatus.
The products adopt friction welding workmanship. The lugs have the characteristics such as high weld strength, long life and so on.
Suitable for distribution device, the electric power electric wire connection of electrical equipment and browsing.
Specification:
| PART NO |
TYPE | WIRE RANGE | φD | E | B | t | L | Max current A |
Crimping tools | |
| AWG/MCM | mm | |||||||||
| 01401 | 1.25-9 | 22-26 | 0.5-1.6 | 3.4 | 4.6 | 2.8 | 0.8 | 13.5 | 19 | RYO-8 YYT-8 |
| 01409 | 1.25-11.1 | 3.0 | 15.6 | |||||||
| 01402 | 1.25-14.5 | 3.0 | 19.0 | |||||||
| 01403 | 1.25-18 | 2.5 | 22.8 | |||||||
| 01404 | 2-9 | 16-14 | 1.0-2.6 | 4.0 | 4.8 | 2.8 | 0.8 | 13.8 | 27 | |
| 01405 | 2.16 | 3.0 | 20.8 | |||||||
| 01406 | 2.18 | 2.5 | 22.8 | |||||||
| 01407 | 5.5-10 | 12-10 | 2.6-6.6 | 5.6 | 6.8 | 2.8 | 1.0 | 16.8 | 48 | |
| 01408 | 5.5-18 | 4.5 | 24.8 | |||||||
Process:
Selected material , Production, QC inspection ,Packing, Delivery
Certification:
UL ,TUV, ISO9001, ISO14001, Brand name YL
The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.
Carefully selected material, strictly QC standards,
we had kept our quality for more than 20 years, developing for 24 years we are more profession.
Company profile:
Suzhou Yuanli Metal Enterprise Co., Ltd was established in 1993 as a wholly Taiwanese invested company,which specializes in the manufacturing of various Ring terminals, Fork terminals, Copper tube terminals, Closed-end terminals, Butt connectors, Blade terminals, Pin terminals, Male and Female terminals.
After 24years development, we are most famous brand name in China.
We passed ISO9001 , ISO14001, TUV
Some products even have obtained the U.S UL certification, also all kinds of terminals have passed SGS test and meet ROHS requirement.
OEM service
If you have drawings,we can produce for you;
If you have sampels, we can research for you;
If you have requirements, we can customize for you;
We would be your reliable partner and will work out the best solution for you !
Welcome to inquire from us !
