Product Details:
|
| Type: | Crimp Terminal | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL | Surface Treatment: | Coated Tin |
| Product Name: | Cable Terminal | Special: | OEM Service Offered |
| Application: | Wire Connecting | Port: | Shanghai Port |
| High Light: | Copper Sleeve Pre Insulated Terminals,Vinyl Insulated Blade Terminals,Flared Entry Pre Insulated Terminals |
||

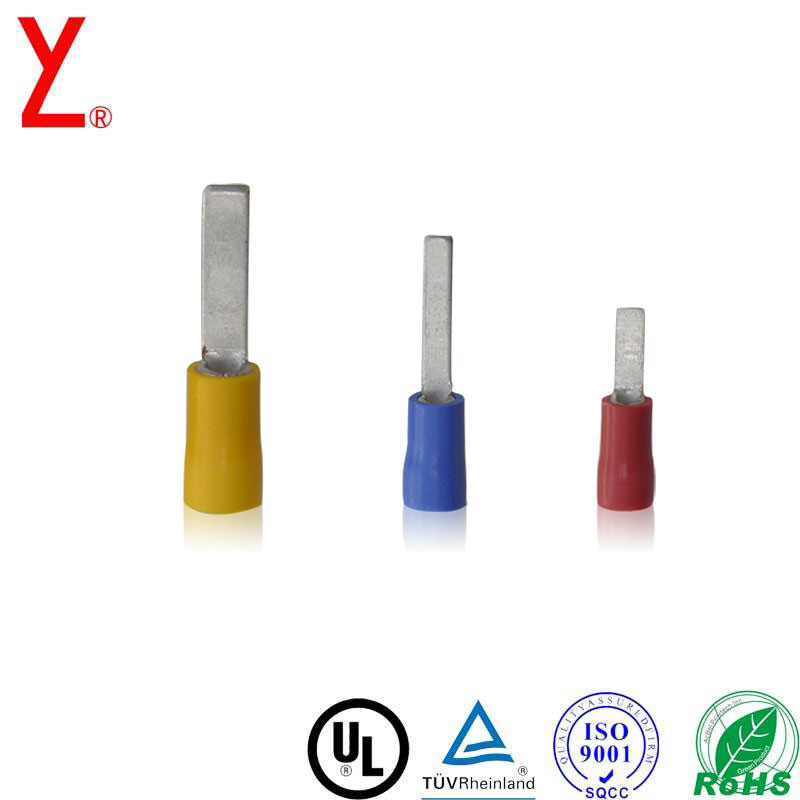

Flared Entry Copper Sleeve Vinyl Insulated Blade Pre Insulated Terminals
A complete range of pre-insulated terminals that combine high quality with competitive pricing. High grade PVC insulation makes crimping easy whilst ensuring complete integrity of termination.
The copper tube cable lugs is tin plated, also known as the wire nose. The copper tube nose is a connecting piece for connecting the wire and cable to the electrical equipment. The top side is fixed with the screw side, and the end is the upper stripped wire .The most popular type of our cable lug are TL and SC lug. We also have bimetal lug(aluminum and copper lug). Our cable lug is widely used in a variety of lamps, lighting, household appliances, industrial appliances, power distribution cabinets, automotive wiring harnesses, wire and cable, electronic motor power, power systems and other industries.
Specification:
| PART NO |
TYPE | WIRE RANGE | B | L | t | φD | H | Color | Max current A |
Crimping Tools | |
| AWG/MCM | mm² | ||||||||||
| 01201 | 1.25-9 | 22-16 | 0.5-1.6 | 2.8 | 19.5 | 0.8 | 4.0 | 10.6 | RED | 19 | RYO-8 YYT-8 |
| 01209 | 1.25-11.1 | 3.0 | 21.6 | ||||||||
| 01202 | 1.25-14.5 | 3.0 | 25.0 | ||||||||
| 01203 | 1.25-18 | 2.5 | 28.5 | ||||||||
| 01204 | 2-9 | 16-14 | 1.0-2.6 | 2.8 | 19.5 | 0.8 | 4.7 | 10.7 | BLUE | 27 | |
| 01205 | 2-16 | 3.0 | 26.8 | ||||||||
| 01206 | 2-18 | 2.5 | 28.5 | ||||||||
| 01207 | 5.5-10 | 12-10 | 2.6-6.6 | 2.8 | 23.7 | 1.0 | 6.2 | 13.7 | YELLOW | 48 | |
| 01208 | 5.5-18 | 4.5 | 31.7 | ||||||||
Process:
Selected material , Production, QC inspection ,Packing, Delivery
Certification:
UL ,TUV, ISO9001, ISO14001, Brand name YL
The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.
Carefully selected material, strictly QC standards,
we had kept our quality for more than 20 years, developing for 24 years we are more profession.
Company profile:
Suzhou Yuanli Metal Enterprise Co., Ltd was established in 1993 as a wholly Taiwanese invested company,which specializes in the manufacturing of various Ring terminals, Fork terminals, Copper tube terminals, Closed-end terminals, Butt connectors, Blade terminals, Pin terminals, Male and Female terminals.
After 24years development, we are most famous brand name in China.
We passed ISO9001 , ISO14001, TUV
Some products even have obtained the U.S UL certification, also all kinds of terminals have passed SGS test and meet ROHS requirement.
OEM service
If you have drawings,we can produce for you;
If you have sampels, we can research for you;
If you have requirements, we can customize for you;
We would be your reliable partner and will work out the best solution for you !
Welcome to inquire from us !
