Product Details:
|
| Type: | Crimp Terminal | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL | Application: | Wire Connecting |
| Surface Treatment: | Coated Tin | Special: | OEM Service Offered |
| Selling Units: | Single Item | Single Package Size : | 30X20X23 Cm |
| Single Gross Weight: | 20.000 Kg | Package Type: | 30PCS/transparent Poly Bag,20bags/carton ,carton Size 30*22.5*20cm |
| High Light: | UL Cable Fork Terminal,Pure Copper Cable Fork Terminal,Cable Fork Terminal OEM |
||

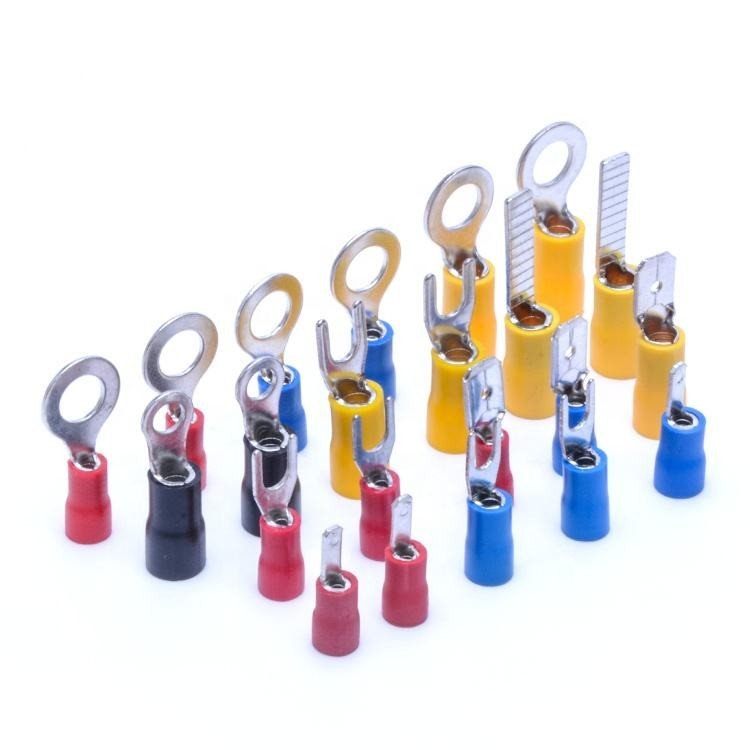

UL Insulated Ring Cable Fork Terminal OEM Ring Fork Pure Copper Coated Tin
Fork Terminals are a type of connector used to attach a wire or wires to a stud, bus bar, or another part of an electrical system. A fork terminal is commonly used to help prevent frayed wires and offer a high level of protection. Often times in an electrical environment, vibration is a serious factor. It can cause terminals to come loose and the result is a loss in electrical conductivity. Pacer's has solved this problem by utilizing two unique and distinct solutions; flanged fork terminals and locking fork terminals. Fork terminals offer a secure and safe connection method. Pacer products are proven industry standard. Don't let a few cents cost you a day with loved ones on the water. Make sure you get the highest quality parts possible.
Specification:
| PART NO |
TYPE | WIRE RANGE | φD | H | F | B | φd2 | L | Color | Max current A |
Crimping tools | |
| AWG/MCM | mm² | |||||||||||
| 00101 | 0.75-3 | 22-18 | 0.2-1.0 | 3.5 | 9.6 | 4.3 | 5.5 | 3.2 | 16.5 | RED | 10 | YYT-1 YYT-7 |
| 00102 | 0.75-4 | 6.6 | 8.0 | 4.3 | 20.0 | |||||||
| 00103 | 0.75-5 | 6.6 | 8.0 | 5.3 | 20.0 | |||||||
| 00104 | 1.25-3S | 18-16 | 0.5-1.6 | 4.0 | 10.6 | 4.3 | 5.5 | 3.2 | 17.7 | 19 | ||
| 00105 | 1.25-3 | 4.3 | 5.5 | 3.7 | 17.7 | |||||||
| 00106 | 1.25-3M1 | 6.6 | 6.6 | 3.2 | 20.5 | |||||||
| 00107 | 1.25-3M | 6.6 | 6.6 | 3.7 | 20.5 | |||||||
| 00108 | 1.25-4 | 7.3 | 8.0 | 4.3 | 21.9 | |||||||
| 00109 | 1.25-4M | 6.6 | 6.6 | 4.3 | 20.5 | |||||||
| 00110 | 1.25-5 | 7.3 | 8.0 | 5.3 | 21.9 | |||||||
| 00111 | 1.25-6 | 11.4 | 11.6 | 6.4 | 27.8 | |||||||
| 00112 | 1.25-8 | 11.4 | 11.6 | 8.4 | 27.8 | |||||||
| 00113 | 2-3 | 16-14 | 1.0-2.6 | 4.7 | 10.7 | 7.7 | 8.5 | 3.2 | 22.7 | BLUE | 27 | |
| 00114 | 2-3M | 6.3 | 6.6 | 3.7 | 20.3 | |||||||
| 00115 | 2-4 | 7.7 | 8.5 | 4.3 | 22.7 | |||||||
| 00116 | 2-4M | 6.3 | 6.6 | 4.3 | 20.3 | |||||||
| 00117 | 2-5 | 7.2 | 9.5 | 5.3 | 22.7 | |||||||
| 00118 | 2-6 | 11.0 | 12.0 | 6.4 | 27.4 | |||||||
| 00119 | 2-8 | 11.0 | 12.0 | 8.4 | 27.4 | |||||||
| 00120 | 2-10 | 13.9 | 13.6 | 10.5 | 31.4 | |||||||
| 00121 | 3.5-4 | 12-10 | 2.6-4.6 | 5.8 | 13.5 | 8.2 | 9.5 | 4.3 | 26.5 | YELLOW | 37 | |
| 00122 | 3.5-5 | 8.2 | 9.5 | 5.3 | 26.5 | |||||||
| 00123 | 3.5-6 | 8.5 | 12.0 | 6.4 | 28.0 | |||||||
| 00124 | 5.5-3 | 12-10 | 4.6-6.6 | 6.2 | 13.6 | 8.2 | 9.5 | 3.7 | 26.6 | 48 | ||
| 00125 | 5.5-4 | 8.2 | 9.5 | 4.3 | 26.6 | |||||||
| 00126 | 5.5-5 | 8.2 | 9.5 | 5.3 | 26.6 | |||||||
| 00127 | 5.5-6 | 13.0 | 12.0 | 6.4 | 32.6 | |||||||
| 00128 | 5.5-8 | 13.7 | 15.0 | 8.4 | 34.8 | |||||||
| 00129 | 5.5-10 | 13.7 | 15.0 | 10.5 | 34.8 | |||||||
Process:
Selected material , Production, QC inspection ,Packing, Delivery
Certification:
UL ,TUV, ISO9001, ISO14001, Brand name YL
The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.
Carefully selected material, strictly QC standards,
we had kept our quality for more than 20 years, developing for 24 years we are more profession.
Recommend prodcuts:
Company profile:
Suzhou Yuanli Metal Enterprise Co., Ltd was established in 1993 as a wholly Taiwanese invested company,which specializes in the manufacturing of various Ring terminals, Fork terminals, Copper tube terminals, Closed-end terminals, Butt connectors, Blade terminals, Pin terminals, Male and Female terminals.
After 24years development, we are most famous brand name in China.
We passed ISO9001 , ISO14001, TUV.
Some products even have obtained the U.S UL certification, also all kinds of terminals have passed SGS test and meet ROHS requirement.
OEM service
If you have drawings,we can produce for you;
If you have sampels, we can research for you;
If you have requirements, we can customize for you;
We would be your reliable partner and will work out the best solution for you !
Welcome to inquire from us !
