Product Details:
|
| Type: | Fork Crimp Terminals | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL | Surface Treatment: | Coated Tin Plating |
| Application: | Wire Connecting | Single Package Size : | 30X20X23 Cm |
| High Light: | Copper insulated fork lugs,ISO9001 red fork terminals,SGS red fork terminals |
||

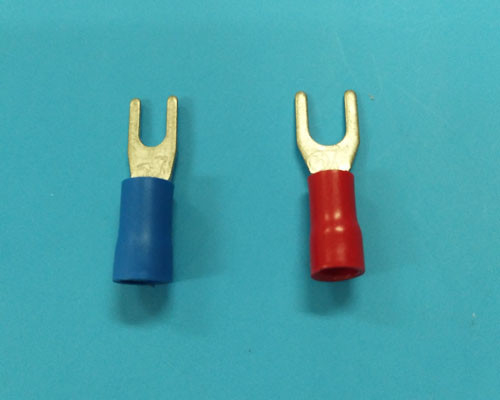

Copper PVC Fork Insulated Electrical Wire Crimp Terminals
Description:
1. High quality U type terminal connector;
2. Have many colors for your choose;
3. Exquisite workmanship, easy to assemble.
Product Name Copper PVC Fork Insulated Electrical Wire Crimp Terminals
Certificate SGS,CE,RoHS,ISO9001
Material Copper
Insulation:PVC
Terminal Body:Copper
Plating: Tin
Color Red,Blue,Black and Yellow
| PART NO |
TYPE | WIRE RANGE | φD | H | F | B | φd2 | L | Color | Max current A |
Crimping tools | |
| AWG/MCM | mm² | |||||||||||
| 00201 | 1.25-3 | 18-16 | 0.5-1.6 | 4.0 | 10.6 | 6.5 | 5.7 | 3.2 | 22.0 | RED | 19 | YYT-1 YYT-7 |
| 00202 | 1.25-3S | 6.5 | 5.7 | 3.7 | 22.0 | |||||||
| 00203 | 1.25-3W | 6.5 | 6.4 | 3.7 | 22.0 | |||||||
| 00204 | 1.25-4S | 6.5 | 6.4 | 4.3 | 22.0 | |||||||
| 00205 | 1.25-4W | 6.5 | 7.2 | 4.3 | 22.0 | |||||||
| 00206 | 1.25-5 | 6.5 | 8.0 | 5.3 | 22.0 | |||||||
| 00207 | 2-3 | 16-14 | 1.0-2.6 | 4.7 | 10.7 | 6.5 | 5.7 | 3.2 | 22.0 | BLUE | 19 27 |
|
| 00208 | 2-3S | 6.5 | 5.7 | 3.7 | 22.0 | |||||||
| 00209 | 2-3W | 6.5 | 6.2 | 3.7 | 22.0 | |||||||
| 00210 | 2-4S | 6.5 | 6.2 | 4.3 | 22.0 | |||||||
| 00211 | 2-4W | 6.5 | 7.2 | 4.3 | 22.0 | |||||||
| 00212 | 2-5 | 6.5 | 8.0 | 5.3 | 22.0 | |||||||
| 00213 | 2-6 | 9.0 | 10.7 | 6.4 | 26.0 | |||||||
| 00214 | 3.5-4 | 12-10 | 2.6-4.6 | 5.8 | 13.5 | 6.9 | 8.0 | 4.3 | 25.0 | YELLOW | 37 | |
| 00215 | 3.5-5 | 8.0 | 8.0 | 5.3 | 25.0 | |||||||
| 00216 | 5.5-3 | 12-10 | 4.6-6.6 | 6.2 | 13.6 | 7.1 | 7.3 | 3.2 | 26.5 | 48 | ||
| 00217 | 5.5-3S | 7.5 | 8.2 | 3.7 | 26.5 | |||||||
| 00218 | 5.5-4 | 7.5 | 8.2 | 4.3 | 26.5 | |||||||
| 00219 | 5.5-5 | 8.0 | 9.0 | 5.3 | 26.5 | |||||||
| 00220 | 5.5-6 | 12.0 | 12.0 | 6.4 | 33.4 | |||||||
Process:
Selected material , Production, QC inspection ,Packing, Delivery
Certification:
UL ,TUV, ISO9001, ISO14001, Brand name YL
The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.
Carefully selected material, strictly QC standards,
we had kept our quality for more than 20 years, developing for 24 years we are more profession.
Recommend prodcuts:
Company profile:
Suzhou Yuanli Metal Enterprise Co., Ltd was established in 1993 as a wholly Taiwanese invested company,which specializes in the manufacturing of various Ring terminals, Fork terminals, Copper tube terminals, Closed-end terminals, Butt connectors, Blade terminals, Pin terminals, Male and Female terminals.
After 24years development, we are most famous brand name in China.
We passed ISO9001 , ISO14001, TUV
Some products even have obtained the U.S UL certification, also all kinds of terminals have passed SGS test and meet ROHS requirement.
OEM service:
If you have drawings,we can produce for you;
If you have sampels, we can research for you;
If you have requirements, we can customize for you;
We would be your reliable partner and will work out the best solution for you !
Welcome to inquire from us !
