Product Details:
|
| Type: | Crimp Terminal | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | ISO9001 | Surface Treatment: | Coated Tin |
| Special: | OEM Service Offered | Application: | Wire Connecting |
| Item: | Electric Wire Conectors | Selling Units: | Single Item |
| Single Package Size : | 30X20X23 Cm | Single Gross Weight: | 0.020 Kg |
| Package Type: | 30PCS/transparent Poly Bag,20bags/carton ,carton Size 30*22.5*20cm | ||
| High Light: | 10A Cable Terminal Lugs,ISO9001 Bullet Male Connector,ISO9001 Cable Terminal Lugs |
||

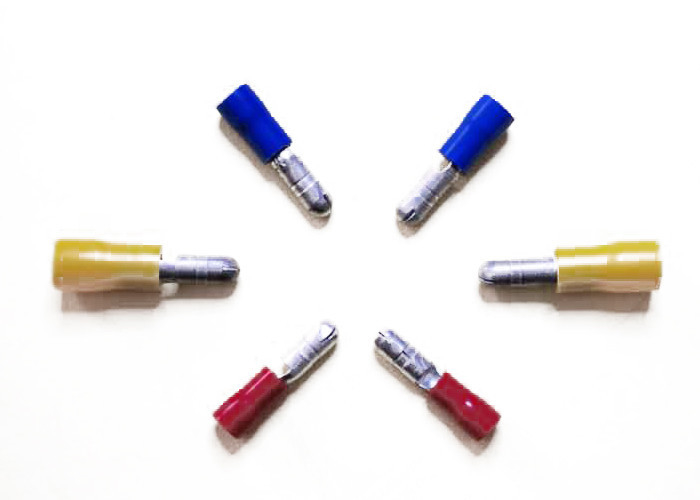

Electrical wire connectors Bullet-male connector terminal auto electrical connector
A range of Male & Female Bullet pre-insulated terminals that combine high quality with competitive pricing.
Pre-insulated crimp terminals are used to terminate stranded wire. They are applied onto a wire and crimped using our recommended crimp tools to produce a neat terminated end, often then connected to another terminal or fixing.Our terminals consist of the following materials: copper, tin & vinyl.
A complete range of pre-insulated terminals that combine high quality with competitive pricing.
High grade PVC insulation makes crimping easy whilst ensuring complete integrity of termination
Specification:
| F*A |
| PART NO |
TYPE | WIRE RANGE | φd | L | φD | H | Color | Max current A |
Crimping tools | |
| AWG/MCM | mm² | |||||||||
| 01901 | F1.25-4A | 22-16 | 0.5-1.6 | 3.95 | 20.2 | 3.5 | 9.7 | RED | 10 | YYT-1 YYT-7 |
| 01903 | F2-4A | 16-14 | 1.0-2.6 | 3.96 | 20.2 | 4.0 | 9.7 | BLUE | 15 | |
| 01904 | F2-5A | 4.96 | ||||||||
| 01905 | F5.5-4A | 12-10 | 2.6-6.6 | 3.96 | 24.5 | 5.4 | 13.7 | YELLOW | 24 | |
| 01906 | F5.5-5A | 4.96 | ||||||||
Process:
Selected material , Production, QC inspection ,Packing, Delivery
Certification:
TUV, ISO9001, ISO14001, Brand name YL
The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.
Carefully selected material, strictly QC standards,
we had kept our quality for more than 20 years, developing for 24 years we are more profession.
Company profile:
Suzhou Yuanli Metal Enterprise Co., Ltd was established in 1993 as a wholly Taiwanese invested company,which specializes in the manufacturing of various Ring terminals, Fork terminals, Copper tube terminals, Closed-end terminals, Butt connectors, Blade terminals, Pin terminals, Male and Female terminals.
After 24years development, we are most famous brand name in China.
We passed ISO9001 , ISO14001, TUV
Some products even have obtained the U.S UL certification, also all kinds of terminals have passed SGS test and meet ROHS requirement.
OEM service:
If you have drawings,we can produce for you;
If you have sampels, we can research for you;
If you have requirements, we can customize for you;
We would be your reliable partner and will work out the best solution for you !
Welcome to inquire from us !
