Product Details:
|
| Type: | Cable Fork Terminal | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL | Surface Treatment: | Coated Tin Plating |
| Application: | Wire Connecting | Selling Units: | Single Item |
| Single Package Size : | 30X20X23 Cm | ||
| High Light: | Cable Fork Terminal 18Awg,Cable Fork Terminal 1.6sqmm,insulated wire fork terminals |
||

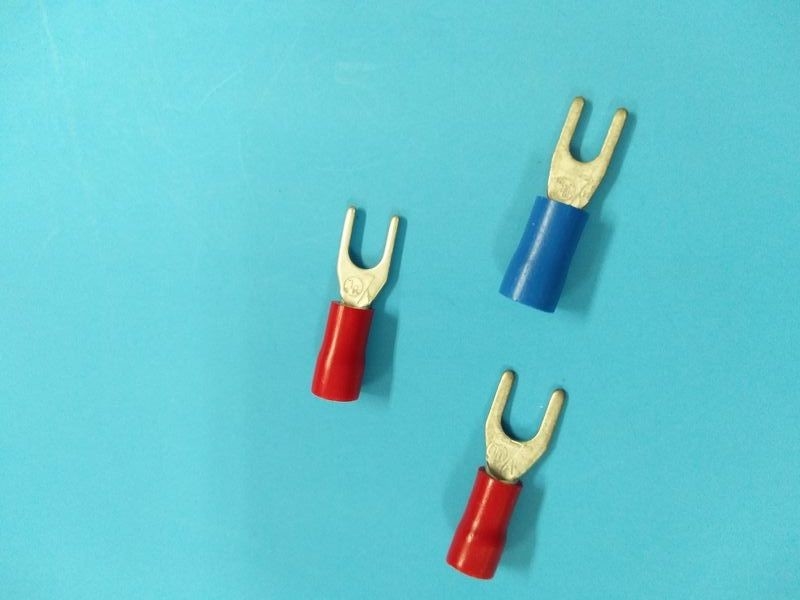

Insulated Locking 18Awg Cable Fork Terminal 1.6sqmm Red U Shaped
Description:
Ring terminals connect two or more wires to a single connection point, such as a circuit protection device. Ring terminals are often used in the automotive industry and are ideal for connecting mechanical relays or contactors to engines or other automotive circuits.
| PART NO |
TYPE | WIRE RANGE | φD | H | F | B | φd2 | L | Color | Max current A |
Crimping tools | |
| AWG/MCM | mm² | |||||||||||
| 00201 | 1.25-3 | 18-16 | 0.5-1.6 | 4.0 | 10.6 | 6.5 | 5.7 | 3.2 | 22.0 | RED | 19 | YYT-1 YYT-7 |
| 00202 | 1.25-3S | 6.5 | 5.7 | 3.7 | 22.0 | |||||||
| 00203 | 1.25-3W | 6.5 | 6.4 | 3.7 | 22.0 | |||||||
| 00204 | 1.25-4S | 6.5 | 6.4 | 4.3 | 22.0 | |||||||
| 00205 | 1.25-4W | 6.5 | 7.2 | 4.3 | 22.0 | |||||||
| 00206 | 1.25-5 | 6.5 | 8.0 | 5.3 | 22.0 | |||||||
| 00207 | 2-3 | 16-14 | 1.0-2.6 | 4.7 | 10.7 | 6.5 | 5.7 | 3.2 | 22.0 | BLUE | 19 27 |
|
| 00208 | 2-3S | 6.5 | 5.7 | 3.7 | 22.0 | |||||||
| 00209 | 2-3W | 6.5 | 6.2 | 3.7 | 22.0 | |||||||
| 00210 | 2-4S | 6.5 | 6.2 | 4.3 | 22.0 | |||||||
| 00211 | 2-4W | 6.5 | 7.2 | 4.3 | 22.0 | |||||||
| 00212 | 2-5 | 6.5 | 8.0 | 5.3 | 22.0 | |||||||
| 00213 | 2-6 | 9.0 | 10.7 | 6.4 | 26.0 | |||||||
| 00214 | 3.5-4 | 12-10 | 2.6-4.6 | 5.8 | 13.5 | 6.9 | 8.0 | 4.3 | 25.0 | YELLOW | 37 | |
| 00215 | 3.5-5 | 8.0 | 8.0 | 5.3 | 25.0 | |||||||
| 00216 | 5.5-3 | 12-10 | 4.6-6.6 | 6.2 | 13.6 | 7.1 | 7.3 | 3.2 | 26.5 | 48 | ||
| 00217 | 5.5-3S | 7.5 | 8.2 | 3.7 | 26.5 | |||||||
| 00218 | 5.5-4 | 7.5 | 8.2 | 4.3 | 26.5 | |||||||
| 00219 | 5.5-5 | 8.0 | 9.0 | 5.3 | 26.5 | |||||||
| 00220 | 5.5-6 | 12.0 | 12.0 | 6.4 | 33.4 | |||||||
Process:
Selected material , Production, QC inspection ,Packing, Delivery
Certification:
UL ,TUV, ISO9001, ISO14001, Brand name YL
The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.
Carefully selected material, strictly QC standards,
we had kept our quality for more than 20 years, developing for 24 years we are more profession.
Recommend prodcuts:
Company profile:
Suzhou Yuanli Metal Enterprise Co., Ltd was established in 1993 as a wholly Taiwanese invested company,which specializes in the manufacturing of various Ring terminals, Fork terminals, Copper tube terminals, Closed-end terminals, Butt connectors, Blade terminals, Pin terminals, Male and Female terminals.
After 24years development, we are most famous brand name in China.
We passed ISO9001 , ISO14001, TUV
Some products even have obtained the U.S UL certification, also all kinds of terminals have passed SGS test and meet ROHS requirement.
