Product Details:
|
| Type: | Fork Crimp Terminals | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL | Surface Treatment: | Coated Tin Plating |
| Application: | Wire Connecting | Single Package Size : | 30X20X23 Cm |
| High Light: | fork crimp terminals 16AWG,fork crimp terminals Tin Plated,Cable Fork Terminal 14AWG |
||

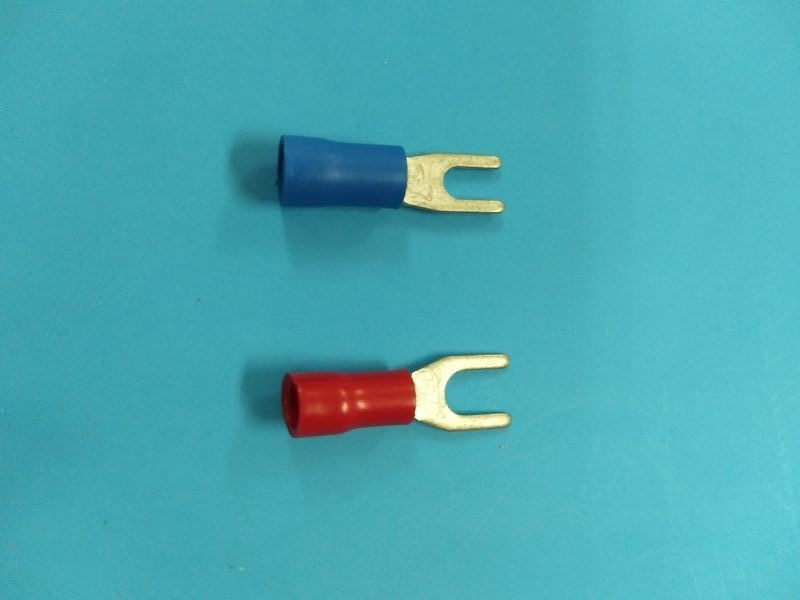

PVC Insulation Fork Crimp Terminals Electrolytic Copper Tin Plated
Description:
Fork Terminals are a type of connector used to attach a wire or wires to a stud, bus bar, or another part of an electrical system.
Locking fork terminal, vinyl insulated, funnel entry, 18 – 14 AWG, #10 stud size, standard package. Locks in place for secure connection, Fork design provides for fast and easy installation, without the need to remove fastener, Insulation support helps to prevent wire damage in bending applications.
| PART NO |
TYPE | WIRE RANGE | φD | H | F | B | φd2 | L | Color | Max current A |
Crimping tools | |
| AWG/MCM | mm² | |||||||||||
| 00201 | 1.25-3 | 18-16 | 0.5-1.6 | 4.0 | 10.6 | 6.5 | 5.7 | 3.2 | 22.0 | RED | 19 | YYT-1 YYT-7 |
| 00202 | 1.25-3S | 6.5 | 5.7 | 3.7 | 22.0 | |||||||
| 00203 | 1.25-3W | 6.5 | 6.4 | 3.7 | 22.0 | |||||||
| 00204 | 1.25-4S | 6.5 | 6.4 | 4.3 | 22.0 | |||||||
| 00205 | 1.25-4W | 6.5 | 7.2 | 4.3 | 22.0 | |||||||
| 00206 | 1.25-5 | 6.5 | 8.0 | 5.3 | 22.0 | |||||||
| 00207 | 2-3 | 16-14 | 1.0-2.6 | 4.7 | 10.7 | 6.5 | 5.7 | 3.2 | 22.0 | BLUE | 19 27 |
|
| 00208 | 2-3S | 6.5 | 5.7 | 3.7 | 22.0 | |||||||
| 00209 | 2-3W | 6.5 | 6.2 | 3.7 | 22.0 | |||||||
| 00210 | 2-4S | 6.5 | 6.2 | 4.3 | 22.0 | |||||||
| 00211 | 2-4W | 6.5 | 7.2 | 4.3 | 22.0 | |||||||
| 00212 | 2-5 | 6.5 | 8.0 | 5.3 | 22.0 | |||||||
| 00213 | 2-6 | 9.0 | 10.7 | 6.4 | 26.0 | |||||||
| 00214 | 3.5-4 | 12-10 | 2.6-4.6 | 5.8 | 13.5 | 6.9 | 8.0 | 4.3 | 25.0 | YELLOW | 37 | |
| 00215 | 3.5-5 | 8.0 | 8.0 | 5.3 | 25.0 | |||||||
| 00216 | 5.5-3 | 12-10 | 4.6-6.6 | 6.2 | 13.6 | 7.1 | 7.3 | 3.2 | 26.5 | 48 | ||
| 00217 | 5.5-3S | 7.5 | 8.2 | 3.7 | 26.5 | |||||||
| 00218 | 5.5-4 | 7.5 | 8.2 | 4.3 | 26.5 | |||||||
| 00219 | 5.5-5 | 8.0 | 9.0 | 5.3 | 26.5 | |||||||
| 00220 | 5.5-6 | 12.0 | 12.0 | 6.4 | 33.4 | |||||||
Process:
Selected material , Production, QC inspection ,Packing, Delivery
Certification:
UL ,TUV, ISO9001, ISO14001, Brand name YL
The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.
Carefully selected material, strictly QC standards,
we had kept our quality for more than 20 years, developing for 24 years we are more profession.
Recommend prodcuts:
Company profile:
Suzhou Yuanli Metal Enterprise Co., Ltd was established in 1993 as a wholly Taiwanese invested company,which specializes in the manufacturing of various Ring terminals, Fork terminals, Copper tube terminals, Closed-end terminals, Butt connectors, Blade terminals, Pin terminals, Male and Female terminals.
After 24years development, we are most famous brand name in China.
We passed ISO9001 , ISO14001, TUV
Some products even have obtained the U.S UL certification, also all kinds of terminals have passed SGS test and meet ROHS requirement.
OEM service:
If you have drawings,we can produce for you;
If you have sampels, we can research for you;
If you have requirements, we can customize for you;
We would be your reliable partner and will work out the best solution for you !
Welcome to inquire from us !
