Product Details:
|
| Type: | Crimp Terminal | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL, Rosh, Reach, ISO | Surface Treatment: | Coated Tin |
| Application: | Wire Connecting | Special: | OEM Service Offered |
| Color: | Silver | Name: | 1.5mm2 High Quality Tinned Pure Copper Cable Lug |
| Port: | Shanghai Port | ||
| High Light: | 70 sq Copper Tube Terminals,2 Awg Battery Cable Lugs,Silver 70 sq mm lugs |
||

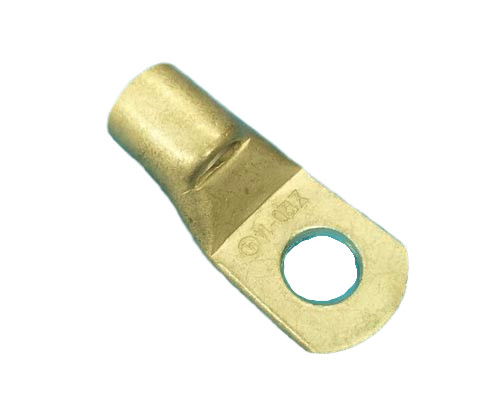

OEM DIN Car Battery Tinned 630 Mm2 Battery Cable Lugs
Product Description
tube connector tubular cable lug
Patent cable lug, China Brand name,Taiwanese mature technology, Top quality for long life time
1. Material: 100% Pure copper,Top material to producing out good quality products
2. Size: 1.5mm2~630mm2
3. Standard: JIS/DIN/Singapore/UK
4. Certification: UL, ISO9001, ROHS, Reach
|
Product Name |
high quality tinned pure copper cable lug |
|
Material |
Pure copper |
|
Color |
Silver |
|
Standard |
JIS/DIN/Singapore/UK |
|
Certification |
UL, Rosh, Reach, ISO9001 |
|
Used |
Car, ship, telecommunication equipment, controller systerm, power cabinet |
|
PART NO |
TYPE |
φD |
φd1 |
E |
H |
B |
φ d2 |
L |
Crimping Tools |
|
00501 |
1.5-5 |
4.0 |
2.2 |
5.0 |
5.0 |
8.0 |
5.3 |
17.0 |
RYO-8 YTT-S RYO-14 |
|
00502 |
2.5-4 |
4.5 |
2.9 |
7.0 |
5.0 |
8.0 |
4.3 |
19.0 |
|
|
00503 |
2.5-5 |
6.0 |
5.3 |
21.0 |
|||||
|
00504 |
2.5-6 |
10.2 |
6.4 |
||||||
|
00505 |
4-5 |
5.2 |
3.6 |
7.0 |
6.0 |
10.0 |
5.3 |
21.0 |
|
|
00506 |
4-6 |
6.4 |
|||||||
|
00507 |
6-5 |
6.0 |
4.2 |
9-0 |
6.0 |
10.0 |
5.3 |
23.8 |
|
|
00508 |
6-6 |
7.5 |
6.4 |
26.0 |
|||||
|
00509 |
6-8 |
12.0 |
8.4 |
26.5 |
|||||
|
00510 |
10-6 |
7.0 |
5.0 |
9.0 |
8.0 |
12.4 |
6.4 |
27.5 |
|
|
00511 |
10-8 |
8.4 |
27.5 |
||||||
|
00512 |
16-6 |
7.8 |
5.8 |
12.0 |
8.0 |
12.4 |
6.4 |
31.0 |
|
|
00513 |
16-8 |
8.4 |
31.0 |
||||||
|
00514 |
25-6 |
9.5 |
7.5 |
12.0 |
8.0 |
14.0 |
6.4 |
32.0 |
CT-38 |
|
00515 |
25-8 |
9.0 |
15.5 |
8.4 |
34.0 |
||||
|
00516 |
25-10 |
10.5 |
17.5 |
10.5 |
37.0 |
||||
|
00517 |
35-6 |
11.4 |
8.6 |
15.0 |
9.0 |
16.5 |
6.4 |
38.0 |
|
|
00518 |
35-8 |
8.4 |
|||||||
|
00519 |
35-10 |
10.5 |
17.5 |
10.5 |
40.5 |
||||
|
00520 |
50-8 |
12.6 |
9.6 |
16.0 |
11.0 |
18.0 |
8.4 |
43.5 |
CT-100 |
|
00521 |
50-10 |
10.5 |
|||||||
|
00522 |
70-8 |
15.0 |
12.0 |
18.0 |
13.0 |
21.8 |
8.4 |
50.0 |
|
|
00523 |
70-10 |
10.5 |
|||||||
|
00524 |
70-12 |
13.0 |
|||||||
|
00525 |
95-10 |
17.4 |
13.5 |
20.0 |
13.0 |
25.0 |
10.5 |
55.0 |
|
|
00526 |
95-12 |
13.0 |
|||||||
|
00527 |
120-12 |
19.8 |
15.0 |
22.0 |
14.0 |
28.4 |
13.0 |
60.0 |
RYO-150 |
|
00528 |
120-16 |
16.0 |
17.0 |
||||||
|
00529 |
150-12 |
21.2 |
16.5 |
26.0 |
16.0 |
30.5 |
13.0 |
69.0 |
|
|
00530 |
150-16 |
17.0 |
|||||||
|
00531 |
185-16 |
23.5 |
18.5 |
32.0 |
17.0 |
34.0 |
17.0 |
78.0 |
CP-700 & C0400 |
|
00532 |
240-16 |
26.5 |
21.5 |
38.0 |
20.0 |
39.0 |
17.0 |
92.0 |
|
|
00533 |
240-20 |
21.0 |
|||||||
|
00534 |
300-16 |
30.0 |
23.5 |
42.0 |
22.0 |
43.0 |
17.0 |
101.0 |
|
|
00535 |
300-20 |
21.0 |
|||||||
|
00536 |
400-16 |
36.5 |
28.5 |
44.0 |
26.0 |
52.5 |
17.0 |
114.0 |
|
|
00537 |
400-20 |
21.0 |
|||||||
|
00538 |
500-16 |
39.0 |
30.5 |
48.0 |
28.0 |
56.0 |
17.0 |
124.0 |
|
|
00539 |
500-20 |
21.0 |
|||||||
|
00540 |
630-30 |
45.0 |
35.5 |
56.0 |
33.0 |
65.0 |
32.0 |
144.0 |
Brand name in China
The largest manufacturer in China
Established in the year of 1993
High quality
The only manufacturer to introduce Taiwan technology.
Original designed by our own technicians.
OEM/ODM
If you have sample, we design for you;
If you have drawing, we produce for you.
Packing
1. Transparent bag
2. Suitable carton size
3. Pallet packing
Learn more
1. Can't find your required size? contact with us
2. Want to custom? contact with us
3. Need quotation? contact with us
4. Test sample? Contact with us
FAQ
Q1: Are you trading company or manufacturer ?
A: We are directly factory, there is not any trading company between us, help you save much cost
Q2: How can you proof of pure copper?
1: we provide free sample to test
2: we provide third party material analasys report for your check
3: Your are allowed to arrange third party to inspect us freely
Q3: How long is your delivery time?
A: Generally it is 5 working days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q4: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: What is your terms of payment ?
A: T/T for large order and western union for sample order
