Product Details:
|
| Type: | Crimp Terminal | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL | Surface Treatment: | Coated Tin Plating |
| Application: | Wire Connecting | Selling Units: | Single Item |
| Single Package Size : | 30X20X23 Cm | Single Gross Weight: | 0.030 Kg |
| Package Type: | 50pcs/transparent Poly Bag, 15bags/ Carton , Carton Size30*20*22.5cm | ||
| High Light: | Bell mouth copper tube terminals,tinned copper terminal lugs,tinned copper tube terminals |
||

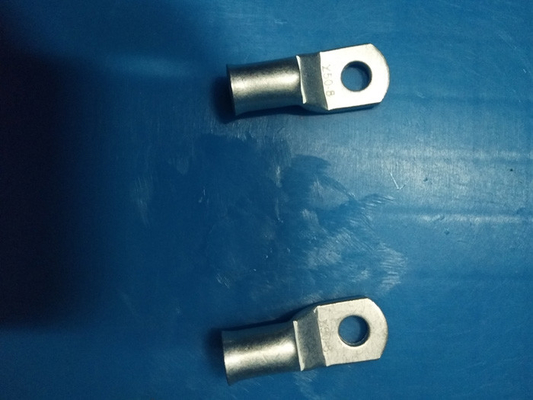

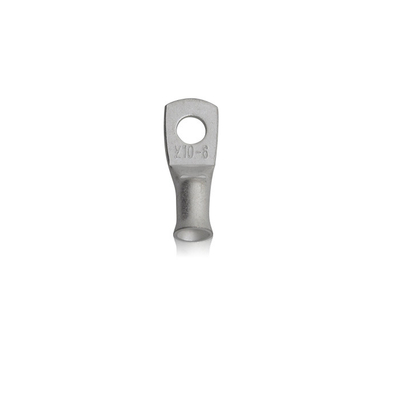

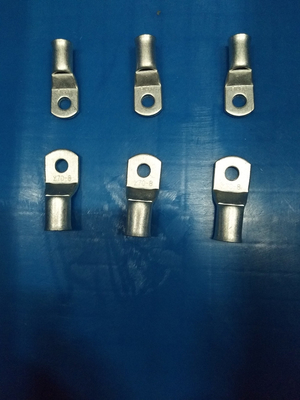

Wire Connecting Bell Mouth Type Tinned Copper Tube Terminals
When installing cable lugs in environments subject to vibration, the lugs still have to provide a reliable connection. The annealing process of the Cembre lug plays a vital role in avoiding cracking or breaks between the barrel and palm.
Specification:
| PART NO | TYPE | φD | φd1 | E | H | B | φ d2 | L |
| 00701 | 6-6 | 6 | 4.2 | 8 | 7 | 11 | 6.4 | 26 |
| 00702 | 6-8 | 8.4 | 26 | |||||
| 00703 | 10-6 | 7 | 5.0 | 12 | 7.5 | 12 | 6.4 | 31.5 |
| 00704 | 10-8 | 8 | 8.4 | 31.5 | ||||
| 00705 | 16-6 | 7.8 | 5.8 | 14 | 10 | 12 | 6.4 | 37 |
| 00706 | 16-8 | 8.4 | 37 | |||||
| 00707 | 25-8 | 9.5 | 7.5 | 17 | 10.5 | 15 | 8.4 | 41 |
| 00708 | 25-10 | 10.5 | 41 | |||||
| 00709 | 35-8 | 11.4 | 8.6 | 17 | 10.5 | 16.3 | 8.4 | 41.5 |
| 00710 | 35-10 | 10.5 | 43 | |||||
| 00711 | 50-8 | 12.6 | 9.6 | 19 | 10.5 | 18 | 8.4 | 46.5 |
| 00712 | 50-10 | 10.5 | ||||||
| 00713 | 70-8 | 15 | 12 | 21 | 11 | 21.7 | 8.4 | 51 |
| 00714 | 70-10 | 10.5 | 51 | |||||
| 00715 | 95-8 | 17.4 | 13.5 | 25 | 12 | 24.7 | 8.4 | 58 |
| 00716 | 95-10 | 10.5 | 58 | |||||
| 00717 | 120-8 | 19.8 | 15 | 26 | 13 | 27.8 | 8.4 | 62 |
| 00718 | 120-10 | 10.5 | 62 | |||||
| 00719 | 120-12 | 13 | 62 | |||||
| 00720 | 150-10 | 21.2 | 16.5 | 30 | 13 | 30 | 10.5 | 67 |
| 00721 | 150-12 | 13 | 67 | |||||
| 00722 | 240-12 | 26.5 | 21.5 | 40 | 20 | 38.5 | 13 | 94 |
| 00723 | 300-16 | 30 | 23.5 | 44 | 20 | 42 | 17 | 99 |
| 00724 | 300-20 | 21 | 99 | |||||
| 00725 | 400-16 | 36.5 | 28.5 | 46 | 25 | 51 | 17 | 113 |
| 00726 | 400-20 | 21 | 113 | |||||
| 00727 | 500-16 | 39 | 30.5 | 50 | 27 | 55 | 17 | 123 |
| 00728 | 500-20 | 21 | 123 | |||||
| 00729 | 630-20 | 45 | 35.5 | 58 | 32 | 64 | 21 | 143 |
| PART NO | TYPE | A | B | W | E | D | L | C |
| 03601 | 1.5-3 | 3.3 | 1.8 | 6.5 | 3.0 | 5.5 | 16.0 | 3.3 |
| 03602 | 1.5-4 | 4.5 | 17.0 | 4.4 | ||||
| 03603 | 1.5-5 | 7.5 | 19.0 | 5.3 | ||||
| 03604 | 2.5-3 | 4.2 | 2.3 | 7.5 | 5.0 | 6.0 | 16.0 | 3.3 |
| 03605 | 2.5-4 | 18.0 | 4.4 | |||||
| 03606 | 2.5-5 | 8.5 | 19.0 | 5.3 | ||||
| 03607 | 2.5-6 | 9.0 | 6.0 | 6.4 | ||||
| 03607 | 4-4 | 5.0 | 3.0 | 8.5 | 6.0 | 6.5 | 21.0 | 4.4 |
| 03608 | 4-5 | 9.0 | 6.0 | 22.0 | 5.3 | |||
| 03609 | 4-6 | 10.0 | 7.0 | 23.0 | 6.4 | |||
| 03610 | 6-5 | 6.0 | 4.0 | 9.5 | 6.0 | 6.5 | 22.0 | 5.3 |
| 03611 | 6-6 | 10.0 | 7.0 | 23.0 | 6.4 | |||
| 03612 | 6-8 | 13.6 | 10.0 | 30.0 | 8.4 | |||
| 03613 | 10-5 | 6.9 | 4.4 | 10.5 | 5.9 | 9.0 | 27.0 | 5.4 |
| 03614 | 10-6 | 6.4 | ||||||
| 03615 | 10-8 | 14.0 | 9.7 | 10.0 | 35.0 | 8.4 | ||
| 03616 | 10-10 | 16.0 | 12.0 | 39.0 | 10.5 | |||
| 03617 | 10-12 | 18.0 | 12.5 | |||||
| 03618 | 16-5 | 8.0 | 5.6 | 11.0 | 5.9 | 11.0 | 29.5 | 5.4 |
| 03619 | 16-6 | 6.4 | ||||||
| 03620 | 16-8 | 14.0 | 9.7 | 38.0 | 8.4 | |||
| 03621 | 16-10 | 16.0 | 12.0 | 42.0 | 10.5 | |||
| 03622 | 16-12 | 18.0 | 12.5 | |||||
| 03623 | 25-5 | 9.5 | 7.0 | 13.5 | 9.7 | 10.0 | 40 | 5.4 |
| 03624 | 25-6 | 6.4 | ||||||
| 03625 | 25-8 | 8.4 | ||||||
| 03626 | 25-10 | 16.8 | 12.0 | 43.5 | 10.5 | |||
| 03627 | 25-12 | 18.0 | 12.7 | |||||
| 03628 | 35-5 | 11.0 | 8.2 | 15.5 | 9.7 | 14.0 | 41.0 | 5.4 |
| 03629 | 35-6 | 6.4 | ||||||
| 03630 | 35-8 | 8.5 | ||||||
| 03631 | 35-10 | 12.0 | 45.0 | 10.5 | ||||
| 03632 | 35-12 | 18.0 | 13.0 | |||||
| 03633 | 35-14 | 20.0 | 15.0 | 50.0 | 14.7 |
Process:
Selected material , Production, QC inspection ,Packing, Delivery
Certification:
UL ,TUV, ISO9001, ISO14001, Brand name YL
The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.
Carefully selected material, strictly QC standards,
we had kept our quality for more than 20 years, developing for 24 years we are more profession.
Recommend products:
Company profile:
Suzhou Yuanli Metal Enterprise Co., Ltd was established in 1993 as a wholly Taiwanese invested company,which specializes in the manufacturing of various Ring terminals, Fork terminals, Copper tube terminals, Closed-end terminals, Butt connectors, Blade terminals, Pin terminals, Male and Female terminals.
After 24years development, we are most famous brand name in China.
We passed ISO9001 , ISO14001, TUV.
Some products even have obtained the U.S UL certification, also all kinds of terminals have passed SGS test and meet ROHS requirement.
OEM service
If you have drawings,we can produce for you;
If you have sampels, we can research for you;
If you have requirements, we can customize for you;
We would be your reliable partner and will work out the best solution for you !
Welcome to inquire from us !
