Product Details:
|
| Type: | Crimp Terminal | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL | Surface Treatment: | Coated Tin Plating |
| Application: | Wire Connecting | Selling Units: | Single Item |
| Single Package Size : | 30X20X23 Cm | Single Gross Weight: | 0.035 Kg |

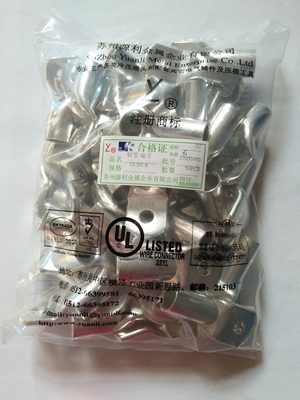

| Package Type: | 50pcs/ Transparent Poly Bags , 15bags/ Carton , Carton Size:30*20*22.5cm | ||
| High Light: | 25mm2 battery cable lug,25mm2 solder battery lugs,5mm battery cable lug |
||

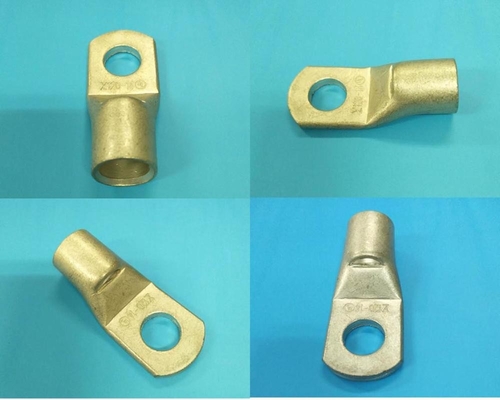

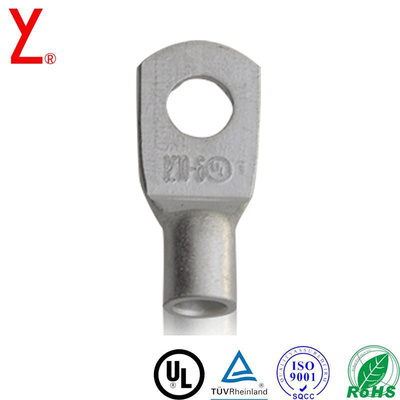

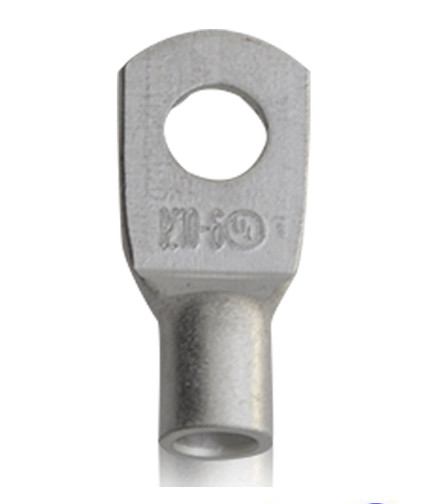

Tin Plating PVC Insulated Copper 25mm2 Battery Cable Lug
Cembre Cable Crimping lugs are annealed to guarantee optimum ductility which is an absolute necessity for connectors which will have to withstand the severe deformation arising when compressed and any bending of the palm during installation.
Description :
| PART NO | TYPE | φD | φd1 | E | H | B | φ d2 | L | Crimping Tools |
| 00501 | 1.5-5 | 4.0 | 2.2 | 5.0 | 5.0 | 8.0 | 5.3 | 17.0 | RYO-8 YTT-S RYO-14 |
| 00502 | 2.5-4 | 4.5 | 2.9 | 7.0 | 5.0 | 8.0 | 4.3 | 19.0 | |
| 00503 | 2.5-5 | 6.0 | 5.3 | 21.0 | |||||
| 00504 | 2.5-6 | 10.2 | 6.4 | ||||||
| 00505 | 4-5 | 5.2 | 3.6 | 7.0 | 6.0 | 10.0 | 5.3 | 21.0 | |
| 00506 | 4-6 | 6.4 | |||||||
| 00507 | 6-5 | 6.0 | 4.2 | 9-0 | 6.0 | 10.0 | 5.3 | 23.8 | |
| 00508 | 6-6 | 7.5 | 6.4 | 26.0 | |||||
| 00509 | 6-8 | 12.0 | 8.4 | 26.5 | |||||
| 00510 | 10-6 | 7.0 | 5.0 | 9.0 | 8.0 | 12.4 | 6.4 | 27.5 | |
| 00511 | 10-8 | 8.4 | 27.5 | ||||||
| 00512 | 16-6 | 7.8 | 5.8 | 12.0 | 8.0 | 12.4 | 6.4 | 31.0 | |
| 00513 | 16-8 | 8.4 | 31.0 | ||||||
| 00514 | 25-6 | 9.5 | 7.5 | 12.0 | 8.0 | 14.0 | 6.4 | 32.0 | CT-38 CT-100 |
| 00515 | 25-8 | 9.0 | 15.5 | 8.4 | 34.0 | ||||
| 00516 | 25-10 | 10.5 | 17.5 | 10.5 | 37.0 | ||||
| 00517 | 35-6 | 11.4 | 8.6 | 15.0 | 9.0 | 16.5 | 6.4 | 38.0 | |
| 00518 | 35-8 | 8.4 | |||||||
| 00519 | 35-10 | 10.5 | 17.5 | 10.5 | 40.5 | ||||
| 00520 | 50-8 | 12.6 | 9.6 | 16.0 | 11.0 | 18.0 | 8.4 | 43.5 | CT-100 |
| 00521 | 50-10 | 10.5 | |||||||
| 00522 | 70-8 | 15.0 | 12.0 | 18.0 | 13.0 | 21.8 | 8.4 | 50.0 | |
| 00523 | 70-10 | 10.5 | |||||||
| 00524 | 70-12 | 13.0 | |||||||
| 00525 | 95-10 | 17.4 | 13.5 | 20.0 | 13.0 | 25.0 | 10.5 | 55.0 | |
| 00526 | 95-12 | 13.0 | |||||||
| 00527 | 120-12 | 19.8 | 15.0 | 22.0 | 14.0 | 28.4 | 13.0 | 60.0 | RYO-150 |
| 00528 | 120-16 | 16.0 | 17.0 | ||||||
| 00529 | 150-12 | 21.2 | 16.5 | 26.0 | 16.0 | 30.5 | 13.0 | 69.0 | |
| 00530 | 150-16 | 17.0 | |||||||
| 00531 | 185-16 | 23.5 | 18.5 | 32.0 | 17.0 | 34.0 | 17.0 | 78.0 | CP-700 & C0400 or Co630 |
| 00532 | 240-16 | 26.5 | 21.5 | 38.0 | 20.0 | 39.0 | 17.0 | 92.0 | |
| 00533 | 240-20 | 21.0 | |||||||
| 00534 | 300-16 | 30.0 | 23.5 | 42.0 | 22.0 | 43.0 | 17.0 | 101.0 | |
| 00535 | 300-20 | 21.0 | |||||||
| 00536 | 400-16 | 36.5 | 28.5 | 44.0 | 26.0 | 52.5 | 17.0 | 114.0 | |
| 00537 | 400-20 | 21.0 | |||||||
| 00538 | 500-16 | 39.0 | 30.5 | 48.0 | 28.0 | 56.0 | 17.0 | 124.0 | |
| 00539 | 500-20 | 21.0 | |||||||
| 00540 | 630-30 | 45.0 | 35.5 | 56.0 | 33.0 | 65.0 | 32.0 | 144.0 |
Process:
Selected material , Production, QC inspection ,Packing, Delivery
Certification:
UL ,TUV, ISO9001, ISO14001, Brand name YL
The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.
Carefully selected material, strictly QC standards,
we had kept our quality for more than 20 years, developing for 24 years we are more profession.
Recommend products:
Company profile:

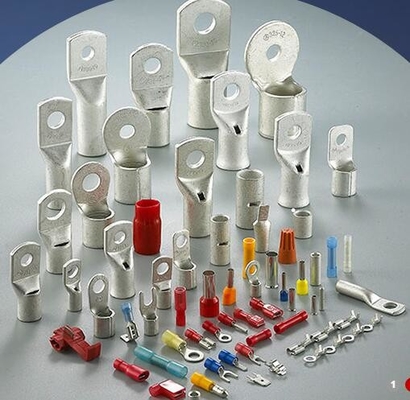

Suzhou Yuanli Metal Enterprise Co., Ltd was established in 1993 as a wholly Taiwanese invested company,which specializes in the manufacturing of various Ring terminals, Fork terminals, Copper tube terminals, Closed-end terminals, Butt connectors, Blade terminals, Pin terminals, Male and Female terminals.
