Product Details:
|
| Type: | Crimp Terminal | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL | Application: | Wire Connecting |
| Surface Treatment: | Coated Tin Plating | Selling Units: | Single Item |
| Single Package Size : | 30X20X23 Cm | Single Gross Weight: | 0.230kg |

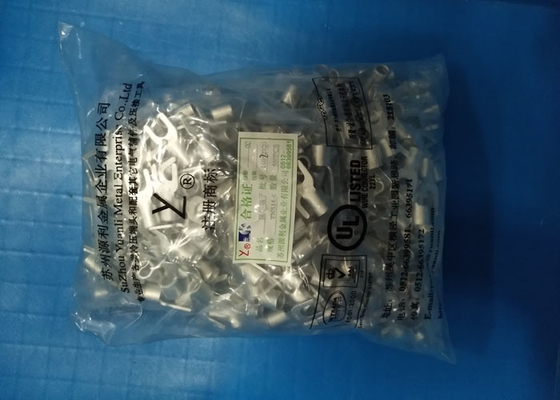

| Package Type: | 1000pcs/ Transparent Poly Bag, 30bags/ Carton , Carton Size 30*20*22.5cm | ||
| High Light: | TNS Non Insulated Terminals,TNS fork crimp connectors,OEM Non Insulated Terminals |
||

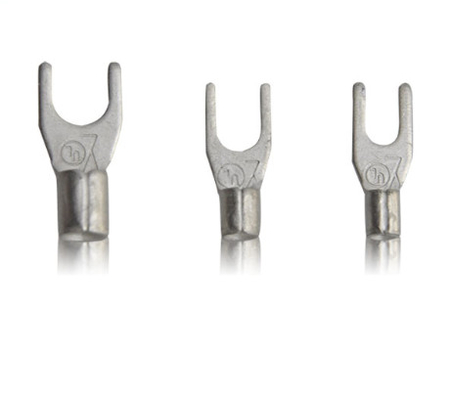

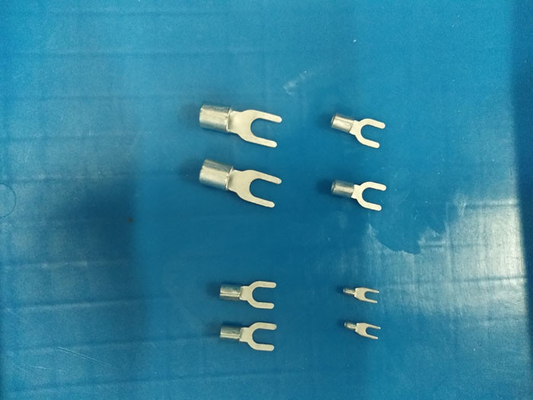

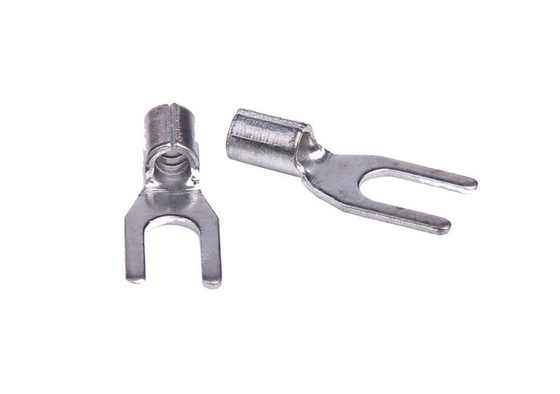

TNS type Electric Fork Copper Terminal Suzhou Yuanli
Specification:
| PART NO |
TYPE | WIRE RANGE | φD | φd1 | E | F | B | φd2 | L | Max current A |
Crimping tools | |
| AWG/MCM | mm | |||||||||||
| 00401 | 1.25-3 | 18-16 | 0.5-1.6 | 3.4 | 1.9 | 4.7 | 6.5 | 5.8 | 3.2 | 16.0 | 19 | RYO-8 YYT-8 |
| 00402 | 1.25-3S | 6.5 | 5.8 | 3.7 | 16.0 | |||||||
| 00403 | 1.25-3W | 6.5 | 6.5 | 3.7 | 16.0 | |||||||
| 00404 | 1.25-4S | 6.5 | 6.4 | 4.3 | 16.0 | |||||||
| 00405 | 1.25-4W | 6.5 | 7.2 | 4.3 | 16.0 | |||||||
| 00406 | 1.25-5 | 6.5 | 8.1 | 5.3 | 16.0 | |||||||
| 00407 | 2-3 | 16-14 | 1.0-2.6 | 4.0 | 2.4 | 4.7 | 6.5 | 5.8 | 3.2 | 16.0 | 27 | |
| 00408 | 2-3S | 6.5 | 5.8 | 3.7 | 16.0 | |||||||
| 00409 | 2-3W | 6.5 | 6.2 | 3.7 | 16.0 | |||||||
| 00410 | 2-4S | 6.5 | 6.4 | 4.3 | 16.0 | |||||||
| 00411 | 2-4W | 6.5 | 7.2 | 4.3 | 16.0 | |||||||
| 00412 | 2-5 | 6.5 | 8.0 | 5.3 | 16.0 | |||||||
| 00413 | 2-6 | 9.0 | 10.7 | 6.4 | 20.1 | |||||||
| 00414 | 3.5-4 | 12-10 | 2.6-4.6 | 5.0 | 3.4 | 6.4 | 6.9 | 8.0 | 4.3 | 18.0 | 37 | RYO-8 YYT-8 |
| 00415 | 3.5-5 | 8.0 | 8.0 | 5.3 | 18.0 | |||||||
| 00416 | 5.5-3 | 12-10 | 4.6-6.6 | 5.6 | 3.6 | 6.5 | 7.1 | 7.3 | 3.2 | 19.5 | 48 | |
| 00417 | 5.5-3S | 7.5 | 8.2 | 3.7 | 19.5 | |||||||
| 00418 | 5.5-4 | 7.5 | 8.2 | 4.3 | 19.5 | |||||||
| 00419 | 5.5-5 | 8.0 | 9.0 | 5.3 | 19.5 | |||||||
| 00420 | 5.5-6 | 12.0 | 12.0 | 6.4 | 26.2 | |||||||
| 00421 | 8-6 | 8 | 6.6-10.5 | 7.0 | 4.6 | 8.6 | 8.5 | 12.2 | 6.7 | 24.0 | 62 | |
| 00422 | 14-5 | 6 | 10.5-16.7 | 9.3 | 6.0 | 10.0 | 11.0 | 12.0 | 5.3 | 27.5 | 88 | |
| 00423 | 14-6 | 11.0 | 12.0 | 6.7 | 27.5 | |||||||
| 00424 | 22-8 | 4 | 16.7-22.6 | 11.3 | 7.5 | 12.0 | 13.0 | 14.0 | 8.4 | 34.0 | 115 | |
Process:
Selected material , Production, QC inspection ,Packing, Delivery
Certification:
UL ,TUV, ISO9001, ISO14001, Brand name YL
The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.
Carefully selected material, strictly QC standards,
we had kept our quality for more than 20 years, developing for 24 years we are more profession.
OEM service
If you have drawings,we can produce for you;
If you have sampels, we can research for you;
If you have requirements, we can customize for you;
We would be your reliable partner and will work out the best solution for you !
Welcome to inquire from us !
