Product Details:
|
| Type: | Crimp Terminal | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL | Application: | Wire Connecting |
| Surface Treatment: | Coated Tin | Special: | OEM Service Offered |
| Selling Units: | Single Item | Single Package Size : | 30X20X23 Cm |
| Single Gross Weight: | 20.000 Kg | Package Type: | 30PCS/transparent Poly Bag,20bags/carton ,carton Size 30*22.5*20cm |
| High Light: | Copper Cable Fork Terminal,Coated Tin Electrical Eyelet Terminals,OEM Cable Fork Terminal |
||

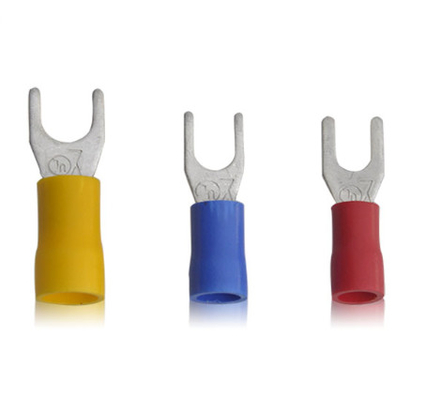

OEM Ring Fork Pure Copper UL Insulated Ring Terminal
The funnel shaped PVC sleeve of these crimp terminals guarantees the conductor strands are completely inserted into the terminal barrel of the cable crimp lug, which creates a secure and reliable, electrical and mechanical connection. The internal surface of the barrel is rifled so to improve contact with the conductor strands of the cables when crimped and to increase tensile strength.
Specification:
| PART NO |
TYPE | WIRE RANGE | φD | H | F | B | φd2 | L | Color | Max current A |
Crimping tools | |
| AWG/MCM | mm² | |||||||||||
| 00101 | 0.75-3 | 22-18 | 0.2-1.0 | 3.5 | 9.6 | 4.3 | 5.5 | 3.2 | 16.5 | RED | 10 | YYT-1 YYT-7 |
| 00102 | 0.75-4 | 6.6 | 8.0 | 4.3 | 20.0 | |||||||
| 00103 | 0.75-5 | 6.6 | 8.0 | 5.3 | 20.0 | |||||||
| 00104 | 1.25-3S | 18-16 | 0.5-1.6 | 4.0 | 10.6 | 4.3 | 5.5 | 3.2 | 17.7 | 19 | ||
| 00105 | 1.25-3 | 4.3 | 5.5 | 3.7 | 17.7 | |||||||
| 00106 | 1.25-3M1 | 6.6 | 6.6 | 3.2 | 20.5 | |||||||
| 00107 | 1.25-3M | 6.6 | 6.6 | 3.7 | 20.5 | |||||||
| 00108 | 1.25-4 | 7.3 | 8.0 | 4.3 | 21.9 | |||||||
| 00109 | 1.25-4M | 6.6 | 6.6 | 4.3 | 20.5 | |||||||
| 00110 | 1.25-5 | 7.3 | 8.0 | 5.3 | 21.9 | |||||||
| 00111 | 1.25-6 | 11.4 | 11.6 | 6.4 | 27.8 | |||||||
| 00112 | 1.25-8 | 11.4 | 11.6 | 8.4 | 27.8 | |||||||
| 00113 | 2-3 | 16-14 | 1.0-2.6 | 4.7 | 10.7 | 7.7 | 8.5 | 3.2 | 22.7 | BLUE | 27 | |
| 00114 | 2-3M | 6.3 | 6.6 | 3.7 | 20.3 | |||||||
| 00115 | 2-4 | 7.7 | 8.5 | 4.3 | 22.7 | |||||||
| 00116 | 2-4M | 6.3 | 6.6 | 4.3 | 20.3 | |||||||
| 00117 | 2-5 | 7.2 | 9.5 | 5.3 | 22.7 | |||||||
| 00118 | 2-6 | 11.0 | 12.0 | 6.4 | 27.4 | |||||||
| 00119 | 2-8 | 11.0 | 12.0 | 8.4 | 27.4 | |||||||
| 00120 | 2-10 | 13.9 | 13.6 | 10.5 | 31.4 | |||||||
| 00121 | 3.5-4 | 12-10 | 2.6-4.6 | 5.8 | 13.5 | 8.2 | 9.5 | 4.3 | 26.5 | YELLOW | 37 | |
| 00122 | 3.5-5 | 8.2 | 9.5 | 5.3 | 26.5 | |||||||
| 00123 | 3.5-6 | 8.5 | 12.0 | 6.4 | 28.0 | |||||||
| 00124 | 5.5-3 | 12-10 | 4.6-6.6 | 6.2 | 13.6 | 8.2 | 9.5 | 3.7 | 26.6 | 48 | ||
| 00125 | 5.5-4 | 8.2 | 9.5 | 4.3 | 26.6 | |||||||
| 00126 | 5.5-5 | 8.2 | 9.5 | 5.3 | 26.6 | |||||||
| 00127 | 5.5-6 | 13.0 | 12.0 | 6.4 | 32.6 | |||||||
| 00128 | 5.5-8 | 13.7 | 15.0 | 8.4 | 34.8 | |||||||
| 00129 | 5.5-10 | 13.7 | 15.0 | 10.5 | 34.8 | |||||||
Process:
Selected material , Production, QC inspection ,Packing, Delivery
Certification:
UL ,TUV, ISO9001, ISO14001, Brand name YL
The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.
Carefully selected material, strictly QC standards,
we had kept our quality for more than 20 years, developing for 24 years we are more profession.
Recommend prodcuts:
Company profile:
Suzhou Yuanli Metal Enterprise Co., Ltd was established in 1993 as a wholly Taiwanese invested company,which specializes in the manufacturing of various Ring terminals, Fork terminals, Copper tube terminals, Closed-end terminals, Butt connectors, Blade terminals, Pin terminals, Male and Female terminals.
After 24years development, we are most famous brand name in China.
We passed ISO9001 , ISO14001, TUV.
Some products even have obtained the U.S UL certification, also all kinds of terminals have passed SGS test and meet ROHS requirement.
OEM service
If you have drawings,we can produce for you;
If you have sampels, we can research for you;
If you have requirements, we can customize for you;
We would be your reliable partner and will work out the best solution for you !
Welcome to inquire from us !
