Product Details:
|
| Type: | Crimp Terminal | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL, Rosh, Reach, ISO | Surface Treatment: | Coated Tin |
| Application: | Wire Connecting | Special: | OEM Service Offered |
| Color: | Silver | Name: | China High Quality Cord End Wire Terminal Price |
| Port: | Shanghai Port | ||
| High Light: | 150sqmm ferrule electrical connector,0.5sqmm ferrule electrical connector,0.5 wire ferrule terminal |
||

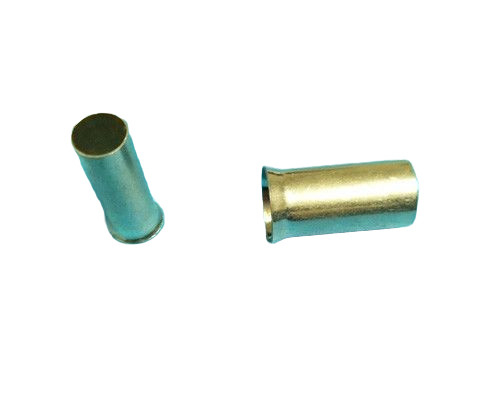

1507 1508 1510 1512 UL Cord End Terminal Wire Connectors
UL listed Naked cord end terminal wire connectors 1507 1508 1510 1512
An electric wire ferrule (sometimes electric end terminal) is a metal tube crimped over stranded wire to secure the strands within a screw terminal. Electrical insulation may be included to protect any exposed portion of the wire not completely inside the screw terminal post.
Stranded wire is preferred for most electrical applications because it is more reliable than solid wire. It is more flexible and durable because repeated bending will not cause it to break. Stranded wire can be more difficult to terminate, because the individual strands tend to separate after insulation is removed.
| Product Name | Non insulated cord end terminal price |
| Material | Pure copper |
| Color | Silver |
| Standard | JIS/DIN/Singapore/UK |
| Certification | UL, Rosh, Reach, ISO9001 |
| Used | Car, ship, telecommunication equipment, controller systerm, power cabinet |
| PART NO |
TYPE | CONDUCTOR(mm) | DIMENSIONS | Crimping Tools | ||||
| L | d2 | d1 | h | D | ||||
| 01001 | 05006 | 0.5 | 6 | 1.3 | 1.0 | 0.7 | 1.9 | YAC-5 |
| 01002 | 05008 | 8 | ||||||
| 01003 | 05010 | 10 | ||||||
| 01004 | 07506 | 0.75 | 6 | 1.5 | 1.2 | 0.7 | 2.1 | |
| 01005 | 07508 | 8 | ||||||
| 01006 | 07510 | 10 | ||||||
| 01007 | 10006 | 1.0 | 6 | 1.8 | 1.5 | 0.7 | 2.5 | |
| 01008 | 10008 | 8 | ||||||
| 01009 | 10010 | 10 | ||||||
| 01010 | 10012 | 12 | ||||||
| 01011 | 15007 | 1.5 | 7 | 2.0 | 1.7 | 1.0 | 2.8 | |
| 01012 | 15008 | 8 | ||||||
| 01013 | 15010 | 10 | ||||||
| 01014 | 15012 | 12 | ||||||
| 01015 | 25007 | 2.5 | 7 | 2.6 | 2.3 | 1.0 | 3.4 | |
| 01016 | 25008 | 8 | ||||||
| 01017 | 25010 | 10 | ||||||
| 01018 | 25012 | 12 | ||||||
| 01019 | 40008 | 4.0 | 8 | 3.2 | 2.8 | 1.0 | 4.0 | |
| 01020 | 40009 | 9 | ||||||
| 01021 | 40010 | 10 | ||||||
| 01022 | 40012 | 12 | ||||||
| 01023 | 40015 | 15 | ||||||
| 01024 | 40018 | 18 | ||||||
| 01025 | 60010 | 6.0 | 10 | 3.9 | 3.5 | 1.0 | 4.7 | YAC-5 YAC-6 |
| 01026 | 60012 | 12 | ||||||
| 01027 | 60015 | 15 | ||||||
| 01028 | 60018 | 6.0 | 18 | 3.9 | 3.5 | 1.0 | 4.8 | YAC-6 YAC-16 |
| 01029 | 100012 | 10.0 | 12 | 4.9 | 4.5 | 1.2 | 5.8 | |
| 01030 | 100015 | 15 | ||||||
| 01031 | 100018 | 18 | ||||||
| 01032 | 160012 | 16.0 | 12 | 6.2 | 5.8 | 1.5 | 7.5 | |
| 01033 | 160015 | 15 | ||||||
| 01034 | 160018 | 18 | ||||||
| 01035 | 250015 | 25.0 | 15 | 7.7 | 7.3 | 1.5 | 9.0 | YAC-16 |
| 01036 | 250016 | 16 | ||||||
| 01037 | 250018 | 18 | ||||||
| 01038 | 250025 | 25 | ||||||
| 01039 | 350016 | 35.0 | 16 | 8.7 | 8.3 | 1.5 | 10.5 | |
| 01040 | 350018 | 18 | ||||||
| 01041 | 350020 | 20 | ||||||
| 01042 | 300025 | 25 | ||||||
| 01043 | 500018 | 50.0 | 18 | 10.9 | 10.3 | 1.5 | 13.0 | YAC-50 |
| 01044 | 500020 | 20 | ||||||
| 01045 | 500025 | 25 | ||||||
| 01046 | 700022 | 70.0 | 22 | 14.3 | 13.5 | 2.0 | 15.3 | |
| 01047 | 700025 | 25 | ||||||
| 01048 | 950025 | 95.0 | 25 | 15.5 | 14.7 | 2.0 | 16.6 | |
| 01049 | 950032 | 32 | ||||||
| 01050 | 1200030 | 120.0 | 30 | 17.6 | 16.7 | 2.0 | 18.6 | |
| 01051 | 1200032 | 32 | ||||||
| 01052 | 1200034 | 34 | ||||||
| 01053 | 1500032 | 150.0 | 32 | 20.5 | 19.5 | 2.0 | 21.5 | |
| 01054 | 1500038 | 38 | ||||||
Brand name in China
The largest manufacturer in China
Established in the year of 1993
High quality
The only manufacturer to introduce Taiwan technology.
Original designed by our own technicians.
OEM/ODM
If you have sample, we design for you;
If you have drawing, we produce for you.
Learn more
1. Can't find your required size? contact with us
2. Want to custom? contact with us
3. Need quotation? contact with us
4. Test sample? Contact with us
FAQ
Q1: Are you trading company or manufacturer ?
A: We are directly factory, there is not any trading company between us, help you save much cost
Q2: How can you proof of pure copper?
1: we provide free sample to test
2: we provide third party material analasys report for your check
3: Your are allowed to arrange third party to inspect us freely
Q3: How long is your delivery time?
A: Generally it is 5 working days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q4: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: What is your terms of payment ?
A: T/T for large order and western union for sample order
