Product Details:
|
| Type: | Crimp Terminal | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL, Rosh, Reach, ISO | Surface Treatment: | Coated Tin |
| Application: | Wire Connecting | Special: | OEM Service Offered |
| Color: | Silver | Name: | 1.5mm2 High Quality Tinned Pure Copper Cable Lug |
| Port: | Shanghai Port | ||
| High Light: | 630mm2 Copper Cable Terminal,SC Copper Cable Terminal,630mm2 copper battery terminals |
||
Rosh ISO 630mm2 Car Battery Copper Cable Terminal
Product Description

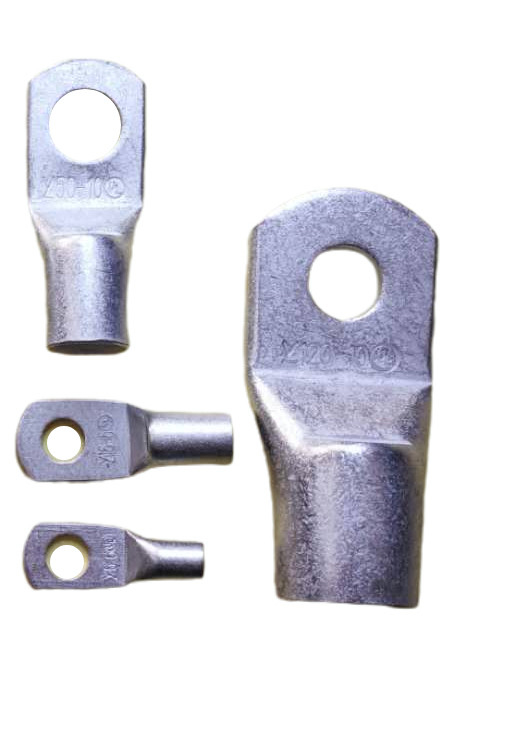

Copper tube Battery Cable Lug Terminals all size
Patent cable lug, China Brand name,Taiwanese mature technology, Top quality for long life time
1. Material: 100% Pure copper,Top material to producing out good quality products
2. Size: 1.5mm2~630mm2
3. Standard: JIS/DIN/Singapore/UK
4. Certification: UL, ISO9001, ROHS, Reach
All the Terminals / lugs are tin plated to avoid oxidisation and to achieve maximum corrossion protection. These Terminals / lugs can be provided with PVC sleeves for protection against electrical shocks and can also be provided with metal reinforced sleeves to maintain a proper grip on conductor insulation.
| Product Name | High quality tinned pure copper cable lug |
| Material | Pure copper |
| Color | Silver |
| Standard | JIS/DIN/Singapore/UK |
| Certification | UL, Rosh, Reach, ISO9001 |
| Used | Car, ship, telecommunication equipment, controller systerm, power cabinet |
Products Show
| PART NO | TYPE | φD | φd1 | E | H | B | φ d2 | L | Crimping Tools |
| 00501 | 1-S-S | 4.0 | 2.2 | 5.0 | 5.0 | 8.0 | 5.3 | 17.0 | RYO-8 YTT-S RYO-14 |
| 00502 | 2.5-4 | 4.5 | 2.9 | 7.0 | 5.0 | 8.0 | 4.3 | 19.0 | |
| 00503 | 2.5-5 | 6.0 | 5.3 | 21.0 | |||||
| 00504 | 2.5-6 | 10.2 | 6.4 | ||||||
| 00505 | 4-5 | 5.2 | 3.6 | 7.0 | 6.0 | 10.0 | 5.3 | 21.0 | |
| 00506 | 4-6 | 6.4 | |||||||
| 00507 | 6-5 | 6.0 | 4.2 | 9-0 | 6.0 | 10.0 | 5.3 | 23.8 | |
| 00508 | 6-6 | 7.5 | 6.4 | 26.0 | |||||
| 00509 | 6-8 | 12.0 | 8.4 | 26.5 | |||||
| 00510 | 10-6 | 7.0 | 5.0 | 9.0 | 8.0 | 12.4 | 6.4 | 27.5 | |
| 00511 | 10-8 | 8.4 | 27.5 | ||||||
| 00512 | 16-6 | 7.8 | 5.8 | 12.0 | 8.0 | 12.4 | 6.4 | 31.0 | |
| 00513 | 16-8 | 8.4 | 31.0 | ||||||
| 00514 | 25-6 | 9.5 | 7.5 | 12.0 | 8.0 | 14.0 | 6.4 | 32.0 | CT-38 CT-100 |
| 00515 | 25-8 | 9.0 | 15.5 | 8.4 | 34.0 | ||||
| 00516 | 25-10 | 10.5 | 17.5 | 10.5 | 37.0 | ||||
| 00517 | 35-6 | 11.4 | 8.6 | 15.0 | 9.0 | 16.5 | 6.4 | 38.0 | |
| 00518 | 35-8 | 8.4 | |||||||
| 00519 | 35-10 | 10.5 | 17.5 | 10.5 | 40.5 | ||||
| 00520 | 50-8 | 12.6 | 9.6 | 16.0 | 11.0 | 18.0 | 8.4 | 43.5 | CT-100 |
| 00521 | 50-10 | 10.5 | |||||||
| 00522 | 70-8 | 15.0 | 12.0 | 18.0 | 13.0 | 21.8 | 8.4 | 50.0 | |
| 00523 | 70-10 | 10.5 | |||||||
| 00524 | 70-12 | 13.0 | |||||||
| 00525 | 95-10 | 17.4 | 13.5 | 20.0 | 13.0 | 25.0 | 10.5 | 55.0 | |
| 00526 | 95-12 | 13.0 | |||||||
| 00527 | 120-12 | 19.8 | 15.0 | 22.0 | 14.0 | 28.4 | 13.0 | 60.0 | RYO-150 |
| 00528 | 120-16 | 16.0 | 17.0 | ||||||
| 00529 | 150-12 | 21.2 | 16.5 | 26.0 | 16.0 | 30.5 | 13.0 | 69.0 | |
| 00530 | 150-16 | 17.0 | |||||||
| 00531 | 185-16 | 23.5 | 18.5 | 32.0 | 17.0 | 34.0 | 17.0 | 78.0 | CP-700 & C0400 or Co630 |
| 00532 | 240-16 | 26.5 | 21.5 | 38.0 | 20.0 | 39.0 | 17.0 | 92.0 | |
| 00533 | 240-20 | 21.0 | |||||||
| 00534 | 300-16 | 30.0 | 23.5 | 42.0 | 22.0 | 43.0 | 17.0 | 101.0 | |
| 00535 | 300-20 | 21.0 | |||||||
| 00536 | 400-16 | 36.5 | 28.5 | 44.0 | 26.0 | 52.5 | 17.0 | 114.0 | |
| 00537 | 400-20 | 21.0 | |||||||
| 00538 | 500-16 | 39.0 | 30.5 | 48.0 | 28.0 | 56.0 | 17.0 | 124.0 | |
| 00539 | 500-20 | 21.0 | |||||||
| 00540 | 630-30 | 45.0 | 35.5 | 56.0 | 33.0 | 65.0 | 32.0 | 144.0 |
Learn more
1. Can't find your required size? contact with us
2. Want to custom? contact with us
3. Need quotation? contact with us
4. Test sample? Contact with us
FAQ
Q1: Are you trading company or manufacturer ?
A: We are directly factory, there is not any trading company between us, help you save much cost
Q2: How can you proof of pure copper?
1: we provide free sample to test
2: we provide third party material analasys report for your check
3: Your are allowed to arrange third party to inspect us freely
Q3: How long is your delivery time?
A: Generally it is 5 working days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q4: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: What is your terms of payment ?
A: T/T for large order and western union for sample order
