Product Details:
|
| Type: | Crimp Terminal | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL, Rosh, Reach, ISO | Surface Treatment: | Coated Tin |
| Application: | Wire Connecting | Special: | OEM Service Offered |
| Color: | Silver | Name: | China High Quality Cable Lug Price |
| High Light: | 2.8 Copper Wire Terminals,6.0 Copper Wire Terminals,1.3 Copper Battery Cable Ends |
||

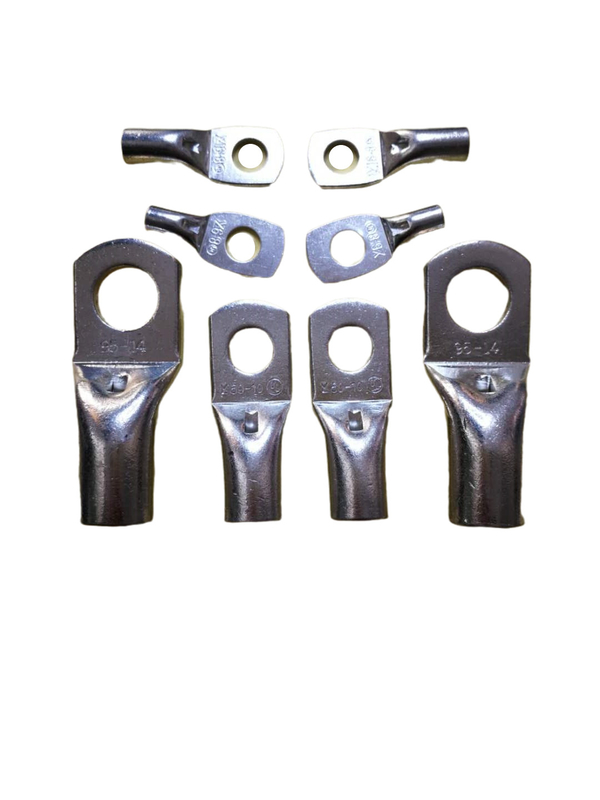

China High quality bell mouth cable lug price
Product Description
The connection end of the lug is then fastened to connection point by means of a bolt, screw, or spring clip. Numerous sizes, configurations and material types are available to suit particular applications. Connector end of lug is typically chosen for its compatibility to the terminal type.
Patent cable lug, China Brand name,Taiwanese mature technology, Top quality for long life time
1. Material: 100% Pure copper,Top material to producing out good quality products
2. Size: 1.5mm2~630mm2
3. Standard: JIS/DIN/Singapore/UK
4. Certification: UL, ISO9001, ROHS, Reach
| Product Name | China High quality cable lug price |
| Material | Pure copper |
| Color | Silver |
| Standard | JIS/DIN/Singapore/UK |
| Certification | UL, Rosh, Reach, ISO9001 |
| Used | Car, ship, telecommunication equipment, controller systerm, power cabinet |
| PART NO | TYPE | d1 | a | b | d2 | d4 | C | L |
| 03701 | 0.75-3 | 1.3 | 6.0 | 6.0 | 3.2 | 2.8 | 4.0 | 15.2 |
| 03702 | 0.75-4 | 6.5 | 4.3 | 5.0 | 17.0 | |||
| 03703 | 0.75-5 | 7.5 | 5.3 | 5.5 | 18.7 | |||
| 03704 | 1.5-3 | 1.8 | 6.0 | 6.5 | 3.2 | 3.3 | 4.0 | 15.2 |
| 03705 | 1.5-4 | 6.5 | 4.3 | 5.0 | 17.0 | |||
| 03706 | 1.5-5 | 7.5 | 5.3 | 5.5 | 18.7 | |||
| 03707 | 1.5-6 | 9.0 | 6.5 | 6.5 | 22.5 | |||
| 03708 | 2.5-3 | 2.3 | 6.0 | 7.5 | 3.2 | 4.2 | 4.0 | 15.2 |
| 03709 | 2.5-4 | 4.3 | 5.0 | 17.0 | ||||
| 03710 | 2.5-5 | 8.5 | 5.3 | 5.5 | 18.7 | |||
| 03711 | 2.5-6 | 9.5 | 6.5 | 6.5 | 22.5 | |||
| 03712 | 2.5-8 | 13.0 | 8.5 | 9.5 | 27.7 | |||
| 03713 | 4-4 | 3.0 | 8.0 | 8.5 | 4.3 | 5.0 | 5.5 | 21.7 |
| 03714 | 4-5 | 9.0 | 5.3 | 6.0 | ||||
| 03715 | 4-6 | 10.0 | 6.5 | 6.5 | 25.5 | |||
| 03716 | 4-8 | 13.0 | 8.5 | 9.5 | 30.5 | |||
| 03717 | 6-5 | 3.5 | 9.0 | 10.0 | 5.5 | 6.5 | 7.5 | 27.5 |
| 03718 | 6-6 | 12.0 | 6.5 | |||||
| 03719 | 6-8 | 15.0 | 8.5 | 10.0 | 33.0 | |||
| 03720 | 6-10 | 17.0 | 10.5 | 12.0 | 37.0 | |||
| 03721 | 6-12 | 19.0 | 13.0 | 13.0 | 41.0 | |||
| 03722 | 10-5 | 4.5 | 10.0 | 12.0 | 5.5 | 7.0 | 7.5 | 28.5 |
| 03723 | 10-6 | 6.5 | ||||||
| 03724 | 10-8 | 15.0 | 8.5 | 10.0 | 35.0 | |||
| 03725 | 10-10 | 17.0 | 10.5 | 12.0 | 39.0 | |||
| 03726 | 10-12 | 19.0 | 13.0 | 13.0 | 42.0 | |||
| 03727 | 16-5 | 5.5 | 13.0 | 12.0 | 5.5 | 8.5 | 6.5 | 31.5 |
| 03728 | 16-6 | 6.5 | 7.5 | 33.2 | ||||
| 03729 | 16-8 | 15.0 | 8.5 | 9.5 | 37.5 | |||
| 03730 | 16-10 | 17.0 | 10.5 | 11.5 | 41.5 | |||
| 03731 | 16-12 | 19.0 | 13.0 | 13.0 | 45.0 | |||
| 03732 | 25-5 | 7.0 | 15.0 | 14.0 | 5.5 | 10.0 | 7.5 | 37.5 |
| 03733 | 25-6 | 6.5 | ||||||
| 03734 | 25-8 | 16.0 | 8.5 | 10.0 | 42.0 | |||
| 03735 | 25-10 | 18.0 | 10.5 | 12.0 | 46.0 | |||
| 03736 | 25-12 | 19.0 | 13.0 | 13.0 | 48.0 | |||
| 03737 | 25-14 | 21.0 | 15.0 | 14.5 | 52.5 | |||
| 03738 | 35-6 | 8.5 | 17.0 | 17.0 | 6.5 | 12.0 | 7.5 | 39.5 |
| 03739 | 35-8 | 8.5 | 10.0 | 44.0 | ||||
| 03740 | 35-10 | 19.0 | 10.5 | 12.0 | 49.0 | |||
| 03741 | 35-12 | 21.0 | 13.0 | 13.0 | 51.0 | |||
| 03742 | 35-14 | 15.0 | 14.5 | 54.5 | ||||
| 03743 | 35-16 | 26.0 | 17.0 | 16.0 | 58.0 | |||
| 03744 | 50-6 | 10.0 | 19.0 | 20.0 | 6.5 | 14.0 | 10.0 | 47.0 |
| 03745 | 50-8 | 8.5 | ||||||
| 03746 | 50-10 | 10.5 | 12.0 | 51.0 | ||||
| 03747 | 50-12 | 23.0 | 13.0 | 13.0 | 56.0 | |||
| 03748 | 50-14 | 15.0 | 14.5 | 59.5 | ||||
| 03749 | 50-16 | 28.0 | 17.0 | 16.0 | 62.0 | |||
| 03750 | 50-20 | 30.0 | 21.0 | 19.0 | 67.0 | |||
| 03751 | 70-6 | 12.0 | 21.0 | 23.0 | 6.5 | 16.5 | 10.0 | 53.0 |
| 03752 | 70-8 | 8.5 | ||||||
| 03753 | 70-10 | 10.5 | 12.0 | 56.0 | ||||
| 03754 | 70-12 | 13.0 | 13.0 | 59.0 | ||||
| 03755 | 70-14 | 15.0 | 14.5 | 62.5 | ||||
| 03756 | 70-16 | 28.0 | 17.0 | 16.0 | 66.0 | |||
| 03757 | 70-20 | 30.0 | 21.0 | 19.0 | 72.0 | |||
| 03758 | 95-8 | 13.5 | 25.0 | 26.0 | 8.5 | 18.0 | 12.0 | 60.0 |
| 03759 | 95-10 | 10.5 | ||||||
| 03760 | 95-12 | 13.0 | 13.0 | 62.0 | ||||
| 03761 | 95-14 | 15.0 | 14.5 | 65.5 | ||||
| 03762 | 95-16 | 28.0 | 17.0 | 16.0 | 70.0 | |||
| 03763 | 95-20 | 36.0 | 21.0 | 22.0 | 82.0 | |||
| 03764 | 120-8 | 15.0 | 26.0 | 28.0 | 8.5 | 19.5 | 14.0 | 65.0 |
| 03765 | 120-10 | 10.5 | ||||||
| 03766 | 120-12 | 13.0 | ||||||
| 03767 | 120-14 | 15.0 | 15.0 | 67.0 | ||||
| 03768 | 120-16 | 30.0 | 17.0 | 16.0 | 70.0 | |||
| 03769 | 120-20 | 36.0 | 21.0 | 22.0 | 85.5 | |||
| 03770 | 150-8 | 16.5 | 30.0 | 31.0 | 8.5 | 21.0 | 14.0 | 70.0 |
| 03771 | 150-10 | 10.5 | ||||||
| 03772 | 150-12 | 13.0 | 15.0 | 72.0 | ||||
| 03773 | 150-14 | 15.0 | ||||||
| 03774 | 150-16 | 17.0 | 16.0 | 74.0 | ||||
| 03775 | 150-20 | 36.0 | 21.0 | 22.0 | 88.0 | |||
| 03776 | 185-10 | 19.0 | 30.0 | 35.0 | 10.5 | 24.0 | 18.0 | 83.0 |
| 03777 | 185-12 | 13.0 | ||||||
| 03778 | 185-14 | 15.0 | ||||||
| 03779 | 185-16 | 17.0 | ||||||
| 03780 | 185-20 | 39.0 | 21.0 | 22.0 | 91.0 | |||
| 03781 | 240-10 | 21.0 | 35.0 | 39.0 | 10.5 | 26.0 | 19.0 | 93.5 |
| 03782 | 240-12 | 13.0 | ||||||
| 03783 | 240-14 | 15.0 | ||||||
| 03784 | 240-16 | 17.0 | ||||||
| 03788 | 240-20 | 21.0 | ||||||
| 03789 | 300-12 | 23.5 | 44.0 | 43.0 | 13.0 | 29.5 | 24.0 | 111.0 |
| 03790 | 300-16 | 17.0 | ||||||
| 03791 | 300-20 | 21.0 | ||||||
| 03792 | 400-12 | 27.5 | 44.0 | 49.0 | 13.0 | 34.0 | 24.0 | 114.0 |
| 03793 | 400-14 | 15.0 | ||||||
| 03794 | 400-16 | 17.0 | ||||||
| 03795 | 400-20 | 21.0 |
Products Show
Learn more
1. Can't find your required size? contact with us
2. Want to custom? contact with us
3. Need quotation? contact with us
4. Test sample? Contact with us
FAQ
Q1: Are you trading company or manufacturer ?
A: We are directly factory, there is not any trading company between us, help you save much cost
Q2: How can you proof of pure copper?
1: we provide free sample to test
2: we provide third party material analasys report for your check
3: Your are allowed to arrange third party to inspect us freely
Q3: How long is your delivery time?
A: Generally it is 5 working days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q4: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: What is your terms of payment ?
A: T/T for large order and western union for sample order
