Product Details:
|
| Type: | Crimp Terminal | Material: | Pure Copper |
|---|---|---|---|
| Certificate: | UL | Application: | Wire Connecting |
| Surface Treatment: | Coated Tin | Special: | OEM Service Offered |
| Port: | Shanghai Port | ||
| High Light: | tinned Cable Ring Terminals,tinned ring crimp connectors,OEM crimp ring terminal |
||
high quality Electrical Circular Terminal,Automotriz Terminal De Conector*

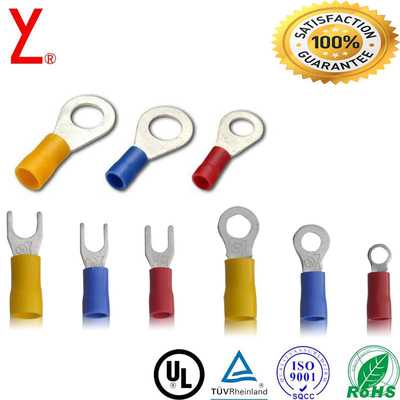

Offering Insulated Ring Type Terminals to our customers that are made using premium quality copper as raw material. The product is widely used in assorted engineering operations and posses following features:
Specification:
| PART NO |
TYPE | WIRE RANGE | φD | H | F | B | φd2 | L | Color | Max current A |
Crimping tools | |
| AWG/MCM | mm² | |||||||||||
| 00101 | 0.75-3 | 22-18 | 0.2-1.0 | 3.5 | 9.6 | 4.3 | 5.5 | 3.2 | 16.5 | RED | 10 | YYT-1 YYT-7 |
| 00102 | 0.75-4 | 6.6 | 8.0 | 4.3 | 20.0 | |||||||
| 00103 | 0.75-5 | 6.6 | 8.0 | 5.3 | 20.0 | |||||||
| 00104 | 1.25-3S | 18-16 | 0.5-1.6 | 4.0 | 10.6 | 4.3 | 5.5 | 3.2 | 17.7 | 19 | ||
| 00105 | 1.25-3 | 4.3 | 5.5 | 3.7 | 17.7 | |||||||
| 00106 | 1.25-3M1 | 6.6 | 6.6 | 3.2 | 20.5 | |||||||
| 00107 | 1.25-3M | 6.6 | 6.6 | 3.7 | 20.5 | |||||||
| 00108 | 1.25-4 | 7.3 | 8.0 | 4.3 | 21.9 | |||||||
| 00109 | 1.25-4M | 6.6 | 6.6 | 4.3 | 20.5 | |||||||
| 00110 | 1.25-5 | 7.3 | 8.0 | 5.3 | 21.9 | |||||||
| 00111 | 1.25-6 | 11.4 | 11.6 | 6.4 | 27.8 | |||||||
| 00112 | 1.25-8 | 11.4 | 11.6 | 8.4 | 27.8 | |||||||
| 00113 | 2-3 | 16-14 | 1.0-2.6 | 4.7 | 10.7 | 7.7 | 8.5 | 3.2 | 22.7 | BLUE | 27 | |
| 00114 | 2-3M | 6.3 | 6.6 | 3.7 | 20.3 | |||||||
| 00115 | 2-4 | 7.7 | 8.5 | 4.3 | 22.7 | |||||||
| 00116 | 2-4M | 6.3 | 6.6 | 4.3 | 20.3 | |||||||
| 00117 | 2-5 | 7.2 | 9.5 | 5.3 | 22.7 | |||||||
| 00118 | 2-6 | 11.0 | 12.0 | 6.4 | 27.4 | |||||||
| 00119 | 2-8 | 11.0 | 12.0 | 8.4 | 27.4 | |||||||
| 00120 | 2-10 | 13.9 | 13.6 | 10.5 | 31.4 | |||||||
| 00121 | 3.5-4 | 12-10 | 2.6-4.6 | 5.8 | 13.5 | 8.2 | 9.5 | 4.3 | 26.5 | YELLOW | 37 | |
| 00122 | 3.5-5 | 8.2 | 9.5 | 5.3 | 26.5 | |||||||
| 00123 | 3.5-6 | 8.5 | 12.0 | 6.4 | 28.0 | |||||||
| 00124 | 5.5-3 | 12-10 | 4.6-6.6 | 6.2 | 13.6 | 8.2 | 9.5 | 3.7 | 26.6 | 48 | ||
| 00125 | 5.5-4 | 8.2 | 9.5 | 4.3 | 26.6 | |||||||
| 00126 | 5.5-5 | 8.2 | 9.5 | 5.3 | 26.6 | |||||||
| 00127 | 5.5-6 | 13.0 | 12.0 | 6.4 | 32.6 | |||||||
| 00128 | 5.5-8 | 13.7 | 15.0 | 8.4 | 34.8 | |||||||
| 00129 | 5.5-10 | 13.7 | 15.0 | 10.5 | 34.8 | |||||||
Process:
Selected material , Production, QC inspection ,Packing, Delivery
Certification:
UL ,TUV, ISO9001, ISO14001, Brand name YL
The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.
Carefully selected material, strictly QC standards,
we had kept our quality for more than 20 years, developing for 24 years we are more profession.
Company profile:
Suzhou Yuanli Metal Enterprise Co., Ltd was established in 1993 as a wholly Taiwanese invested company,which specializes in the manufacturing of various Ring terminals, Fork terminals, Copper tube terminals, Closed-end terminals, Butt connectors, Blade terminals, Pin terminals, Male and Female terminals.
After 24years development, we are most famous brand name in China.
We passed ISO9001 , ISO14001, TUV.
Some products even have obtained the U.S UL certification, also all kinds of terminals have passed SGS test and meet ROHS requirement.
OEM service
If you have drawings,we can produce for you;
If you have sampels, we can research for you;
If you have requirements, we can customize for you;
We would be your reliable partner and will work out the best solution for you !
Welcome to inquire from us !
